6VSK1

Overview

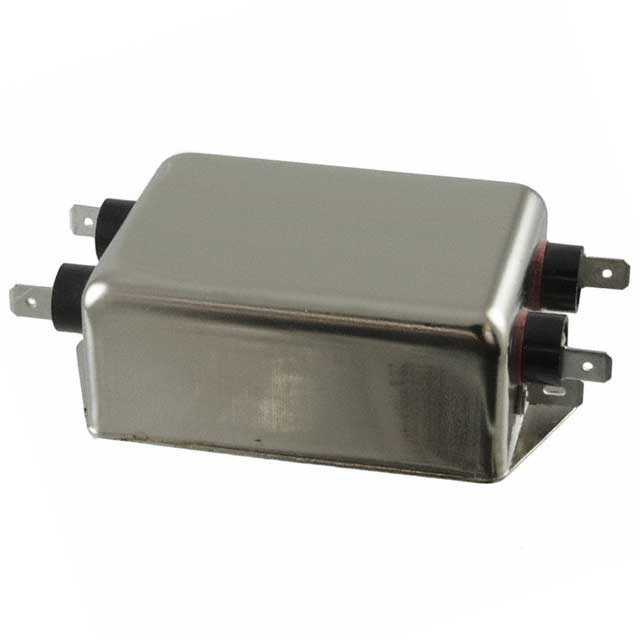

The TE Connectivity Corcom Filters 6VSK1 is a single-stage EMI/RFI power line filter designed for chassis mounting. It supports a rated voltage of 250 VAC and a current rating of 6 A at operating frequencies of 50 Hz and 60 Hz. The component utilizes quick connect terminals for electrical termination and features a flange mount style. It has a specified leakage current of 700 uA and holds UL, CSA, and VDE compliance certifications.

Feature Summary

• Provides single-stage EMI/RFI filtering for AC power lines
• Features quick connect terminal interface for circuit integration
• Designed for secure chassis or panel mounting via flange

Applications

• Industrial equipment power input stages
• Commercial machinery noise suppression
• General purpose AC power conditioning

Procurement Notes

Verify the specific datasheet version to confirm RoHS status and exact physical dimensions before integration. Ensure the receiving PCB or wiring harness matches the quick connect terminal specifications. Confirm that the 6 A current rating and 250 VAC voltage limits align with the system's operational requirements to prevent component failure.

Selection Notes

Select this model when a single-stage filter solution is required for 6 A applications. The flange mount design simplifies installation in enclosed chassis environments. Verify compatibility with existing mounting holes and terminal spacing. Consider the 700 uA leakage current if strict safety isolation standards apply to the final assembly.

Part Context

This component belongs to the Corcom SK series, which covers filters ranging from 3 to 10 Amps. The SK series is characterized by its robust construction and suitability for general industrial and commercial applications. It serves as a standard solution for mitigating conducted electromagnetic interference in single-phase AC power systems.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation.
