6VSK3

Overview

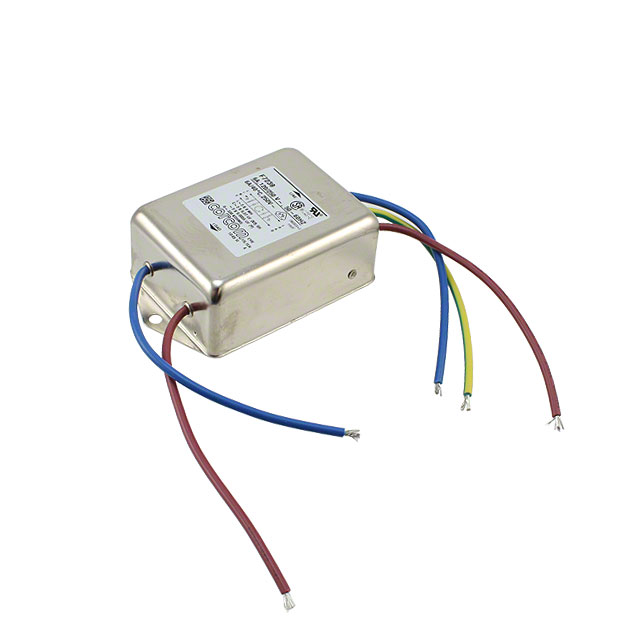

The TE Connectivity Corcom Filters 6VSK3 is a single-phase EMI/RFI power line filter designed for chassis or flange mounting. It supports a rated current of 6 A and operates at voltages up to 250 VAC with a frequency range of 50 Hz to 60 Hz. The component utilizes wire lead termination for circuit connection. It belongs to the SK series, which covers ratings from 3 to 10 Amps. The unit complies with UL, CSA, and VDE safety standards.

Feature Summary

• Provides electromagnetic interference and radio frequency interference suppression for AC power lines
• Features a robust chassis mount design with flange installation capability
• Utilizes quick-connect wire leads for straightforward integration into electrical systems

Applications

• Industrial control panels requiring EMI filtering
• Medical equipment power supplies
• Commercial electronic devices needing noise reduction

Procurement Notes

Verify the specific datasheet version for the 6VSK3 part number to confirm exact leakage current values and inductance specifications, as these parameters are critical for compliance with regional EMC regulations. Ensure that the wire lead gauge matches the application requirements and that the chassis mounting hole dimensions align with the enclosure design before finalizing procurement.

Selection Notes

Select this component when a single-stage filter solution is required for 6 A circuits operating at standard mains frequencies. The flange mount style offers secure mechanical attachment compared to panel mount alternatives. Confirm that the voltage rating of 250 VAC is sufficient for the local power distribution network and that the termination type accommodates the available wiring harnesses.

Part Context

This component is part of the Corcom SK series, a family of power line filters engineered for general-purpose noise suppression. The series provides various current ratings and mounting options to suit different enclosure constraints. The 6VSK3 specifically addresses applications needing moderate current handling with reliable EMI attenuation capabilities.

Replacement Considerations

Consult the official Corcom selector chart for direct equivalents within the same series. Verify that any substitute maintains identical mounting dimensions and terminal configurations to ensure mechanical compatibility without modifying the existing chassis layout.
