6VSK7M

Overview

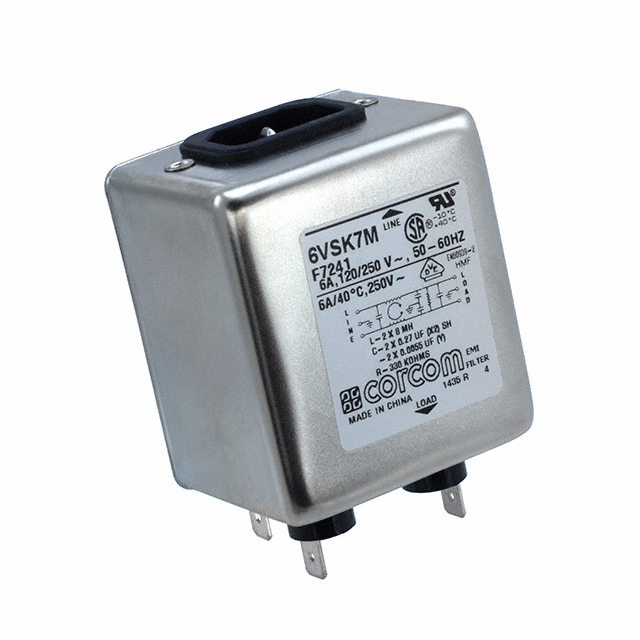

The TE Connectivity Corcom Filters 6VSK7M is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated current of 6 A and operates at AC voltages up to 250 VAC with a frequency range of 50/60 Hz. The unit features a single-stage configuration and utilizes IEC 320-C14 connectors with quick-connect terminals. Certified by CSA, UR, and VDE, it functions within an operating temperature range of -10°C to 40°C.

Feature Summary

• Provides single-stage EMI/RFI noise suppression for power lines
• Integrates IEC 320-C14 inlet connector for standardized interface
• Utilizes quick-connect terminals for simplified circuit assembly
• Designed for secure chassis or bulkhead mounting applications

Applications

• Industrial control systems requiring EMI mitigation
• Medical equipment power entry modules
• General purpose electronic enclosures
• Test and measurement instrumentation

Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to ensure correct terminal style and certification requirements. Confirm that the selected variant meets all necessary regulatory standards for the target market. Check for alternative part numbers such as 6609036-8 which may represent equivalent configurations. Ensure compatibility with the intended chassis mounting hardware before finalizing procurement.

Selection Notes

Select this component when a single-stage filter is sufficient for the application's noise profile. Ensure the system voltage does not exceed 250 VAC and the continuous current load remains within the 6 A rating. Verify that the chassis mounting style aligns with the enclosure design constraints. Confirm that the IEC 320-C14 interface matches the downstream power cord or receptacle requirements.

Part Context

This component belongs to the SK series of Corcom filters, which are engineered for general-purpose power line conditioning. The series offers various current ratings and stage configurations to address different electromagnetic interference challenges in commercial and industrial environments.

Replacement Considerations

Public confirmed substitute part numbers include 6609036-8 and 1609036-8. Verify mechanical dimensions and electrical specifications match before substitution.
