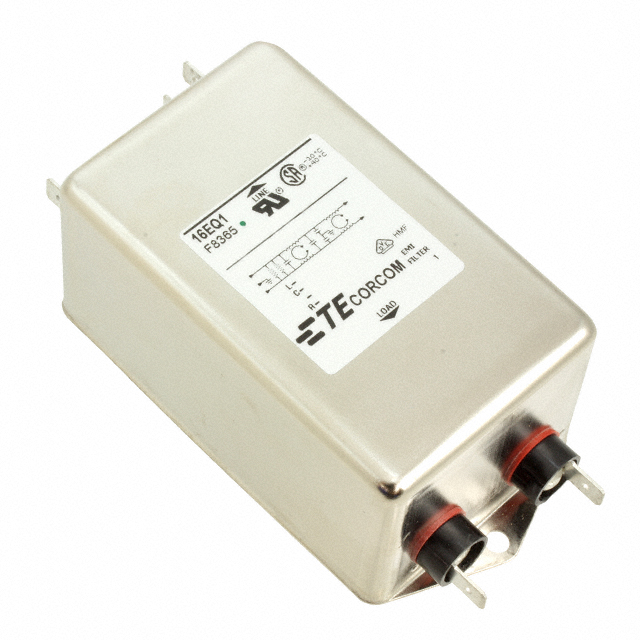

7-1609097-8

$66.50

Description：LINE FILTER 250VAC 16A CHASS MNT
Series：Q
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:99a0ea67bcd6 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 16A CHASS MNT
Series：Q
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：16 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：8.3mH

Download product information

7-1609097-8

Overview

The 7-1609097-8 is a single-phase EMC/EMI power line filter manufactured by TE Connectivity Corcom Filters. It is designed for chassis mounting and supports a rated current of 16 A at 250 VAC with a frequency range of 50/60 Hz. The component features a two-stage filtering configuration and utilizes quick connect terminals for circuit integration. This filter provides electromagnetic interference suppression for AC power lines in industrial and commercial applications.

Feature Summary

Two-stage EMI/RFI filtering architecture
Chassis mount installation style
Quick connect terminal interface

Applications

Industrial machinery power conditioning
Commercial equipment noise suppression
General AC power line filtering

Procurement Notes

Verify the complete part number including the prefix against official TE Connectivity documentation to ensure correct configuration. Confirm that the required current rating and voltage specifications align with your system design before procurement. Check for any specific certification requirements such as UL or CSA depending on your target market regulations.

Selection Notes

Select this component when a single-phase, high-current (16A) solution is required for chassis-mounted applications. Ensure the available panel space accommodates the physical dimensions of the filter. Verify that the quick connect terminal type matches the wiring harness or PCB layout constraints of the host equipment.

Part Context

This component belongs to the TE Connectivity Corcom Filters lineup, which specializes in power line filters for various industrial and commercial needs. The brand is recognized for providing robust EMI/RFI suppression solutions that meet international safety and performance standards for electrical systems.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternatives. Ensure any replacement maintains the same 16A current rating, 250VAC voltage rating, and single-phase configuration to guarantee compatibility.
