7-1609097-9

Overview

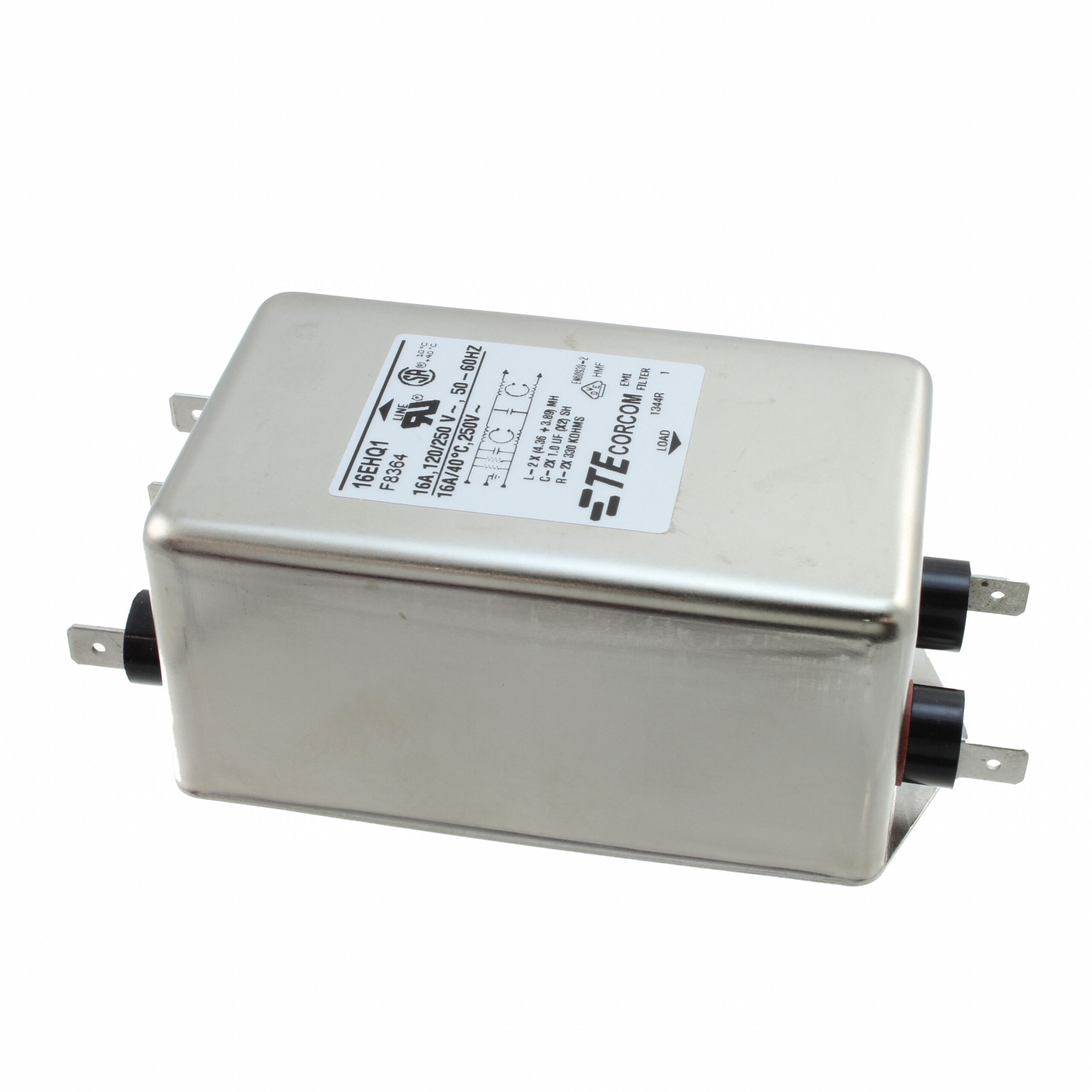

The TE Connectivity Corcom Filters model 7-1609097-9 is a single-phase EMC/EMI line filter designed for chassis mounting. It operates at a rated AC voltage of 250V and supports a current rating of 16A at 50/60Hz frequencies. The component features a two-stage configuration with quick-connect termination style, providing effective noise suppression for power line applications.

Feature Summary

• Single-phase EMI/RFI filtering capability
• Two-stage circuit configuration
• Chassis mount installation style

Applications

• Industrial equipment power conditioning
• Commercial machinery noise suppression
• General purpose power line filtering

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the quick-connect terminal dimensions match the intended PCB or wire harness interface requirements to ensure proper mechanical and electrical integration.

Selection Notes

Select this component when a single-phase solution with a 16A capacity is required for 250VAC systems. Ensure the application environment accommodates chassis mounting and that the two-stage attenuation characteristics align with the specific electromagnetic interference mitigation needs of the target equipment.

Part Context

This part belongs to the TE Connectivity Corcom Filters lineup, specializing in power line filters for industrial and commercial sectors. The series typically offers robust EMI/RFI suppression solutions designed for reliable performance in demanding electrical environments and standard power distribution architectures.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs by comparing electrical ratings and physical dimensions against alternative single-phase filters from other manufacturers if direct substitution is necessary.
