7-6609089-9

Overview

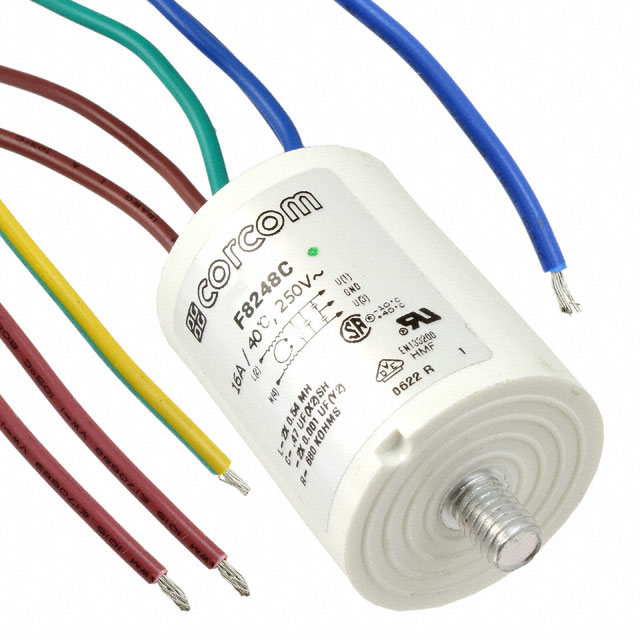

The TE Connectivity Corcom Filters model 7-6609089-9 is a single-phase EMC/EMI line filter rated for 16 A at 250 VAC and 50/60 Hz. It features a single-stage configuration with threaded post (M8) connections and wire leads. The unit includes a Cx capacitance of 0.471 µF.

Feature Summary

• Single-phase EMI/RFI filtering
• Threaded post terminal interface
• Wire lead termination

Applications

• General industrial equipment
• Power supply input stages
• Electronic device noise suppression

Procurement Notes

Verify the exact manufacturer part number against official TE Connectivity documentation before procurement. Confirm that the M8 threaded post specification matches your assembly requirements. Ensure the 16 A current rating and 250 VAC voltage rating are suitable for your specific circuit design to avoid performance issues.

Selection Notes

Select this component when a single-phase filter with high current capacity is required. The M8 threaded post interface offers secure mechanical connection. Verify compatibility with existing wiring harnesses due to the wire lead termination style. Ensure the single-stage filtering meets your electromagnetic interference reduction needs.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, designed for power line filtering applications. It serves as an anti-interference solution for mains power inputs in electronic systems.

Replacement Considerations

Publicly confirmed substitute part numbers for 7-6609089-9 were not identified in the provided source material.
