7000AT18A1600002E

$0.44

Description：RF ANT 7GHZ CER PATCH SOLDER SMD
Series：-
Mfr：Johanson Technology Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3ffa4c13be79 Category: RF Antennas Brand: Johanson Technology Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 7GHZ CER PATCH SOLDER SMD
Series：-
Mfr：Johanson Technology Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：-
Frequency Group：SHF (f > 4GHz)
Frequency (Center/Band)：7.22GHz
Frequency Range：6.2GHz ~ 8.24GHz
Antenna Type：Ceramic Patch
Number of Bands：1
VSWR：-
Return Loss：10dB
Gain：2dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.051" (1.30mm)
Applications：General Purpose
Power - Max：2 W

Download product information

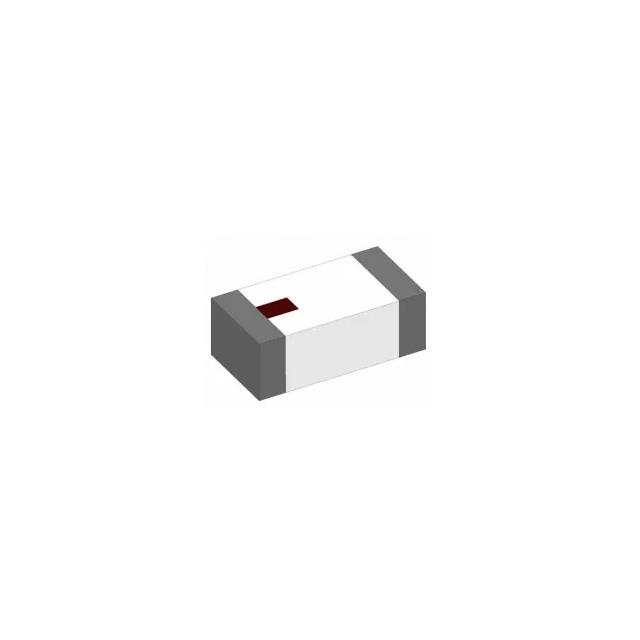

7000AT18A1600002E

Overview

The 7000AT18A1600002E is a miniature RF ceramic chip antenna manufactured by Johanson Technology Inc. utilizing Low Temperature Co-fired Ceramic (LTCC) technology. It operates within the SHF frequency group with a center frequency of 7.22 GHz and a range of 6.2 GHz to 8.24 GHz. The component features a single band configuration, surface mount installation, and SMD/SMT termination. Physical dimensions are 3.2 mm in length and 1.6 mm in width.

Feature Summary

Constructed using LTCC technology for compact form factor
Designed for high-frequency UWB applications
Supports vehicle antenna integration

Applications

High Frequency Solutions
Vehicle Antennas
UWB Systems

Procurement Notes

Verify part status as active before procurement. Confirm that the suffix indicates specific material or packaging variations if required by design specifications. Ensure compatibility with existing supply chain channels as distribution availability may vary by region.

Selection Notes

Select this component for designs requiring a 7 GHz UWB solution. Verify impedance matching requirements against the system's 50 Ohm standard. Consider thermal limits and physical space constraints relative to the 3.2 mm x 1.6 mm footprint during PCB layout.

Part Context

This model belongs to Johanson Technology's AT series of passive antennas. It serves as a successor or variant to previous numbering schemes like 7000AT18A1600E-AEC, reflecting manufacturer part number revisions while maintaining core functional parameters for high-frequency ceramic chip applications.
