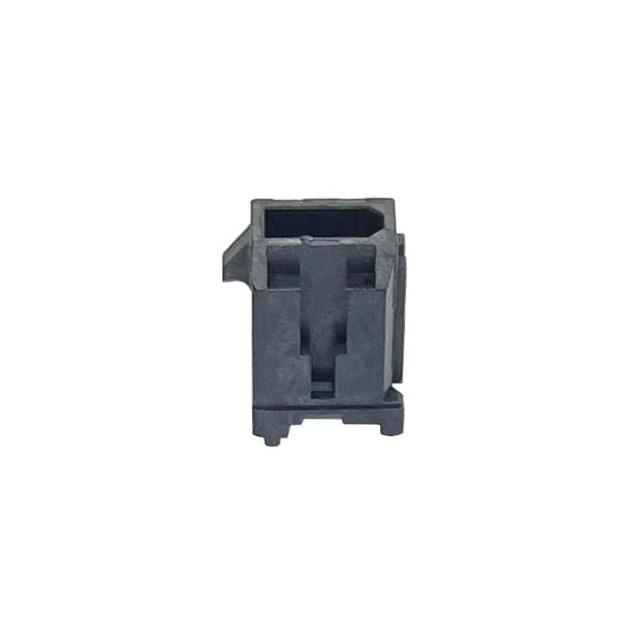

70094-02N8 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists BellWether. Its product description is HEADER 2POS P=3MM VER DIP 2.5WM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for 70094-02N8
- Description：HEADER 2POS P=3MM VER DIP 2.5WM
- Series：Micro-Hi
- Mfr：BellWether
- Package：Tape & Reel (TR)
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：2
- Number of Rows：2
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.098" (2.50mm)
- Overall Contact Length：-
- Insulation Height：0.390" (9.91mm)
- Contact Shape：Square
- Contact Finish - Mating：-
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic, Glass Filled
- Features：Board Guide
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：12.5A
- Voltage Rating：600V
Headers, Male Pins datasheet and documents for 70094-02N8
Headers, Male Pins Overview
The BellWether 70094-02N8 is a 2-position rectangular connector housing designed for through-hole mounting. It features a pin spacing of 0.118 inches (3.00mm) and is manufactured in black. This component serves as the receptacle housing for mating with corresponding male pins, providing a secure mechanical interface for electrical connections in various electronic assemblies.
Headers, Male Pins Feature Summary
- Through-hole mounting technology for PCB integration
- Black color coding for visual identification
- Standard 3.00mm pin spacing design
Headers, Male Pins Applications
- General electronic circuit board assembly
- Industrial control panel wiring
- Consumer electronics interconnects
Headers, Male Pins Procurement Notes
Verify that the specific suffix 'N8' corresponds to the exact 2-position configuration required. Confirm compatibility with the intended mating pin series from the same manufacturer family. Ensure the through-hole footprint matches the target PCB layout dimensions before finalizing procurement orders.
Headers, Male Pins Selection Notes
Select this model when a 2-position through-hole housing is required. The 3.00mm pitch dictates the spacing constraints for the circuit design. Consider environmental factors such as temperature ratings if operating conditions exceed standard commercial limits. Validate mechanical retention requirements against the housing's locking mechanism specifications.
Headers, Male Pins Part Context
This part belongs to BellWether's line of rectangular connector housings. These components are typically paired with separate contact inserts or pins to complete the electrical connection. The product line supports various position counts and mounting styles to accommodate diverse PCB design needs.
Headers, Male Pins Replacement Considerations
No public confirmed substitute part numbers are available for this specific model. Cross-referencing requires matching the 2-position count, 3.00mm pitch, and through-hole mounting style exactly.
