70094-08C8

Headers, Male Pins Overview

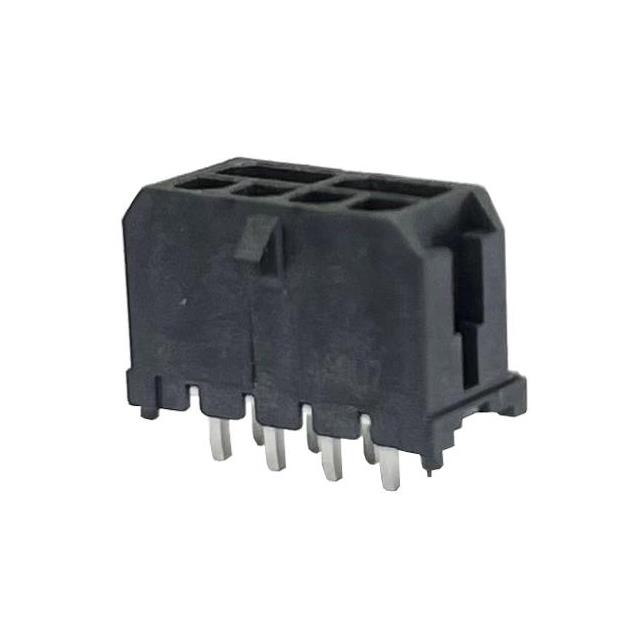

The BellWether 70094-08C8 is a male pin header connector designed for through-hole mounting. It features an 8-position configuration, providing reliable electrical interconnection in compact electronic assemblies. The component utilizes gold plating options on the contact area to ensure durability and low contact resistance over repeated mating cycles. This vertical header is engineered for standard PCB integration, offering stable mechanical retention and consistent signal transmission characteristics suitable for general-purpose circuit board applications.

Headers, Male Pins Feature Summary

• Through-hole mounting technology for secure PCB attachment
• Male pin design for standard socket or cable mating
• Gold-plated contact surfaces available for enhanced conductivity

Headers, Male Pins Applications

• General-purpose printed circuit board interconnections
• Compact electronic device assembly
• Signal transmission modules requiring reliable vertical headers

Headers, Male Pins Procurement Notes

Verify the specific part number against official BellWether documentation to confirm exact pin count and plating specifications. Ensure compatibility with target PCB hole dimensions and mating connector interfaces before procurement. Cross-reference manufacturer datasheets for precise mechanical drawings and environmental ratings to guarantee successful integration into the intended electronic system.

Headers, Male Pins Selection Notes

Select this component based on the requirement for an 8-position through-hole male header. Evaluate the necessary contact plating thickness, such as gold flash or specified micrometer levels, depending on the operational environment and corrosion resistance needs. Confirm that the vertical orientation and pitch match the layout constraints of the target printed circuit board design.

Headers, Male Pins Part Context

This connector belongs to the BellWether Micro-Hi series of vertical headers. The brand specializes in the design and production of connectors, cables, and related electronic components. The 70094-08C8 designation identifies a specific variant within their header lineup, characterized by its position count and mounting style, distinct from other models like the 70094-100.
