70095-16B5 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists BellWether. Its product description is HEADER 16POS P=3MM R/A DIP 2.5WS. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for 70095-16B5
- Description：HEADER 16POS P=3MM R/A DIP 2.5WS
- Series：Micro-Hi
- Mfr：BellWether
- Package：Tape & Reel (TR)
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.098" (2.50mm)
- Overall Contact Length：-
- Insulation Height：0.390" (9.91mm)
- Contact Shape：Square
- Contact Finish - Mating：-
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic, Glass Filled
- Features：Board Guide
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：8.5A
- Voltage Rating：600V
Headers, Male Pins datasheet and documents for 70095-16B5
Headers, Male Pins Overview

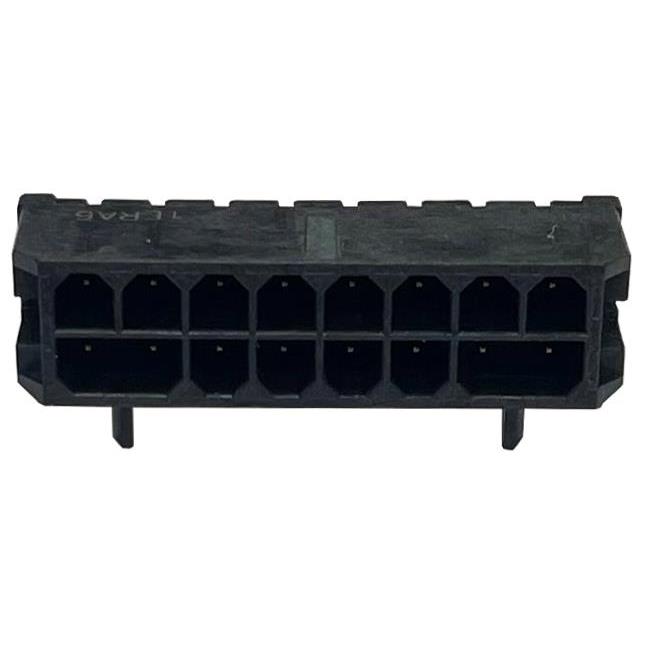

The BellWether 70095-16B5 is a male pin header connector designed for through-hole mounting. It features a right-angle configuration with 16 positions. The connector utilizes a 0.118-inch (3.00mm) pitch spacing between pins. This component is part of the BellWether Micro-Hi series, which specializes in connector design and production.
Headers, Male Pins Feature Summary
- Right-angle orientation for space-efficient board layout
- Through-hole termination method for secure mechanical attachment
- Male pin contact type for mating with socket counterparts
Headers, Male Pins Applications
- General electronic interconnections
- Printed circuit board assembly
- Industrial control systems
Headers, Male Pins Procurement Notes
Verify the specific manufacturer datasheet for the 70095-16B5 to confirm exact electrical ratings and material specifications. Ensure compatibility with mating connectors regarding pitch and housing dimensions. Check for any RoHS or REACH compliance documentation required for your region before finalizing procurement orders.
Headers, Male Pins Selection Notes
Select this component when a right-angle, 16-position through-hole header is required. The 3.00mm pitch dictates the footprint on the PCB. Consider the mechanical stability provided by through-hole mounting versus surface mount alternatives. Verify that the current rating meets the application's power requirements.
Headers, Male Pins Part Context
BellWether manufactures various electronic components including connectors, cables, and FPCAs. The 70095-16B5 falls under their header product line. The company provides after-sales service and support for these hardware items. This specific model is identified by its position count and pitch specification.
Headers, Male Pins Replacement Considerations
No public substitute part numbers are documented for this specific BellWether model. Cross-referencing requires matching the 16-position count, 3.00mm pitch, right-angle form factor, and through-hole termination style. Consult official distributor databases for potential pin-to-pin compatible alternatives if original supply is unavailable.
