70278-9125

Edgeboard Connectors Overview

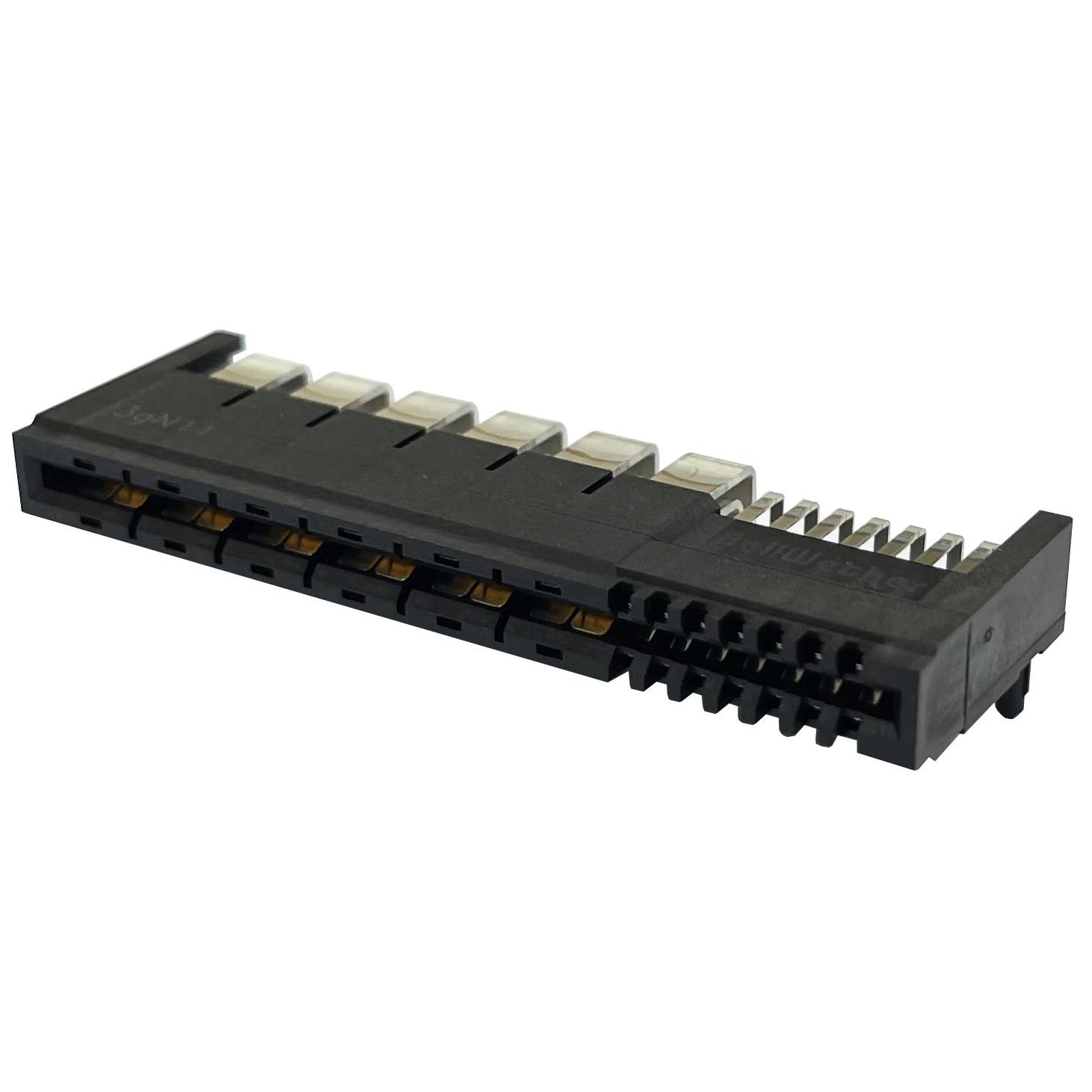

The BellWether 70278-9125 is a dual-edge connector featuring female contacts with a 0.062-inch (1.57mm) interface pitch. It supports 36 power channels and 14 signal channels, accommodating a total of 50 channels. The component utilizes a Dual In-line Package (DIP) mounting type. Rated specifications include 15A for power circuits and 4A for signal circuits, with distinct power and signal pitches of 7.62mm and 2.54mm respectively.

Edgeboard Connectors Feature Summary

• Dual-edge design supporting separate power and signal circuit routing
• Female contact configuration for secure mating connections
• Dual pitch architecture enabling mixed signal and power density

Edgeboard Connectors Applications

• Industrial control systems requiring mixed signal/power interfaces
• Electronic equipment utilizing DIP mounting configurations
• Circuit boards needing high-current power distribution alongside signal transmission

Edgeboard Connectors Procurement Notes

Verify the specific suffix '5' in the part number against official BellWether documentation to confirm exact pinout and rating variations. Ensure compatibility with existing board layouts regarding the specified 7.62mm and 2.54mm pitch requirements. Cross-reference UL certification details if regulatory compliance is mandatory for the end application.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connector is required to separate high-current power lines from sensitive signal traces. The 15A power rating dictates suitability for heavier load applications compared to standard signal-only connectors. Verify that the DIP mounting style aligns with the assembly process and mechanical constraints of the target enclosure.

Edgeboard Connectors Part Context

BellWether Electronic Corporation manufactures electronic components including connectors and cable assemblies. This model belongs to their dual-edge connector series designed for robust industrial and commercial electronics. The company maintains quality certifications such as ISO 9001 and UL recognition, ensuring standardized manufacturing processes for these interconnect solutions.

Edgeboard Connectors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify mechanical footprint and electrical ratings before considering alternative manufacturers.
