70278-C125

Edgeboard Connectors Overview

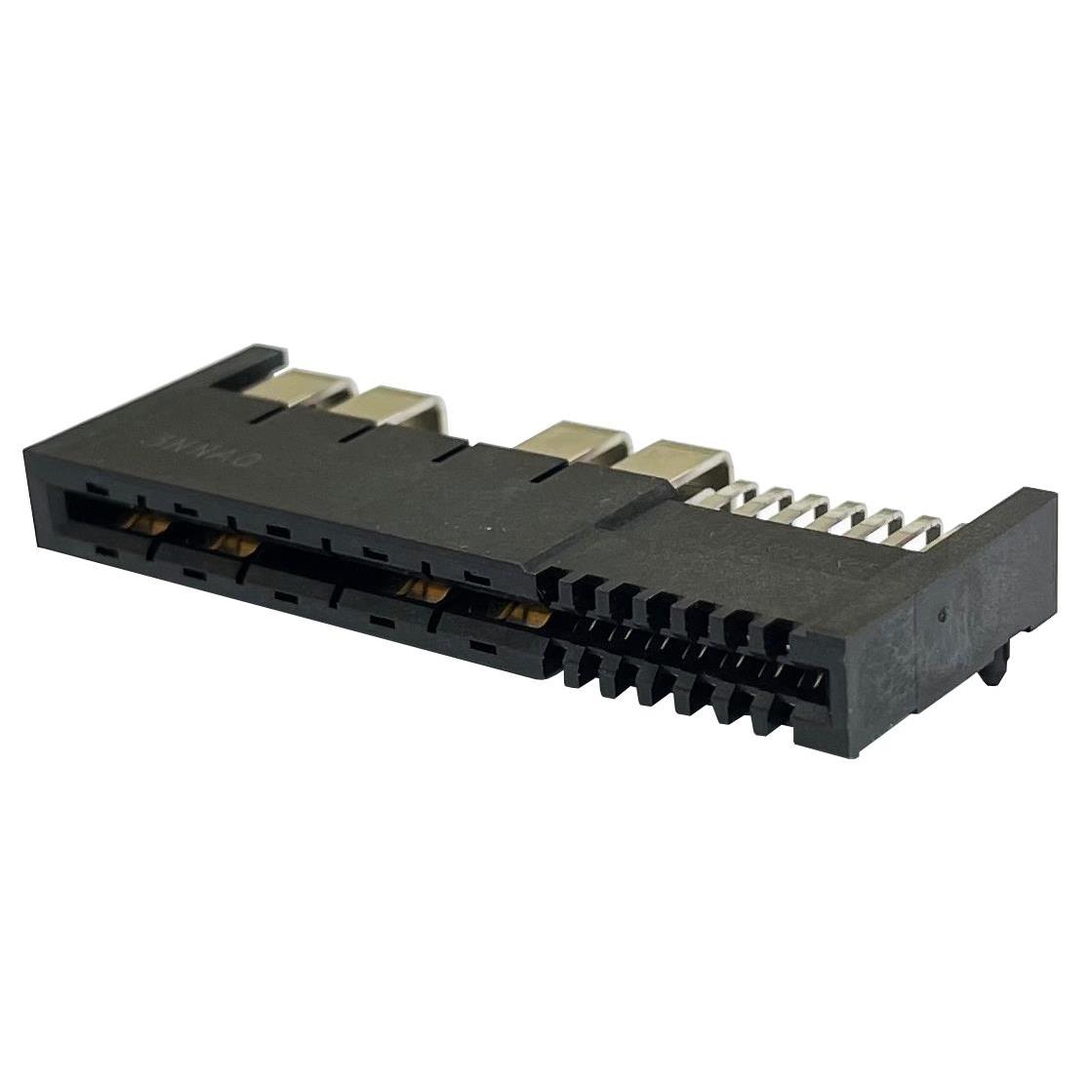

The BellWether 70278-C125 is a right-angle edgeboard connector designed for high-power applications. It features 38 positions with a 2.54mm power pitch and supports a maximum current of 9A per contact. The component utilizes gold-plated contacts to ensure reliable signal integrity and low resistance. Constructed with UL-94-V0 flammability-rated materials, it offers robust performance in demanding electronic environments.

Edgeboard Connectors Feature Summary

• Right-angle mounting configuration for space-efficient PCB integration
• Gold-plated contact surfaces for enhanced conductivity and corrosion resistance
• High-current capability supporting up to 9A per position
• UL-94-V0 rated housing material for improved fire safety

Edgeboard Connectors Applications

• High-Power Supply Unit (HPSU) interconnects
• Server and data center power distribution boards
• Industrial power management systems
• Edge computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific gold plating thickness specification required for your application, as BellWether offers varying grades such as flash or plated options. Confirm that the right-angle form factor aligns with your mechanical constraints. Ensure compatibility with the target PCB stack-up and mating connector standards before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a right-angle connection is necessary for compact power supply designs. The 38-position count and 2.54mm pitch suit standard high-density power buses. Consider the 9A current rating against thermal dissipation requirements. Verify that the CRPS or HPSU form factor matches the system architecture.

Edgeboard Connectors Part Context

This component belongs to BellWether's edgeboard connector series, specifically tailored for high-power supply units. It serves as a critical interface between power modules and mainboards in server infrastructure. The product line emphasizes durability and electrical reliability for continuous operation in enterprise-grade equipment.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and mechanical dimensions if considering alternative manufacturers. Ensure any replacement meets the same current and flammability ratings.
