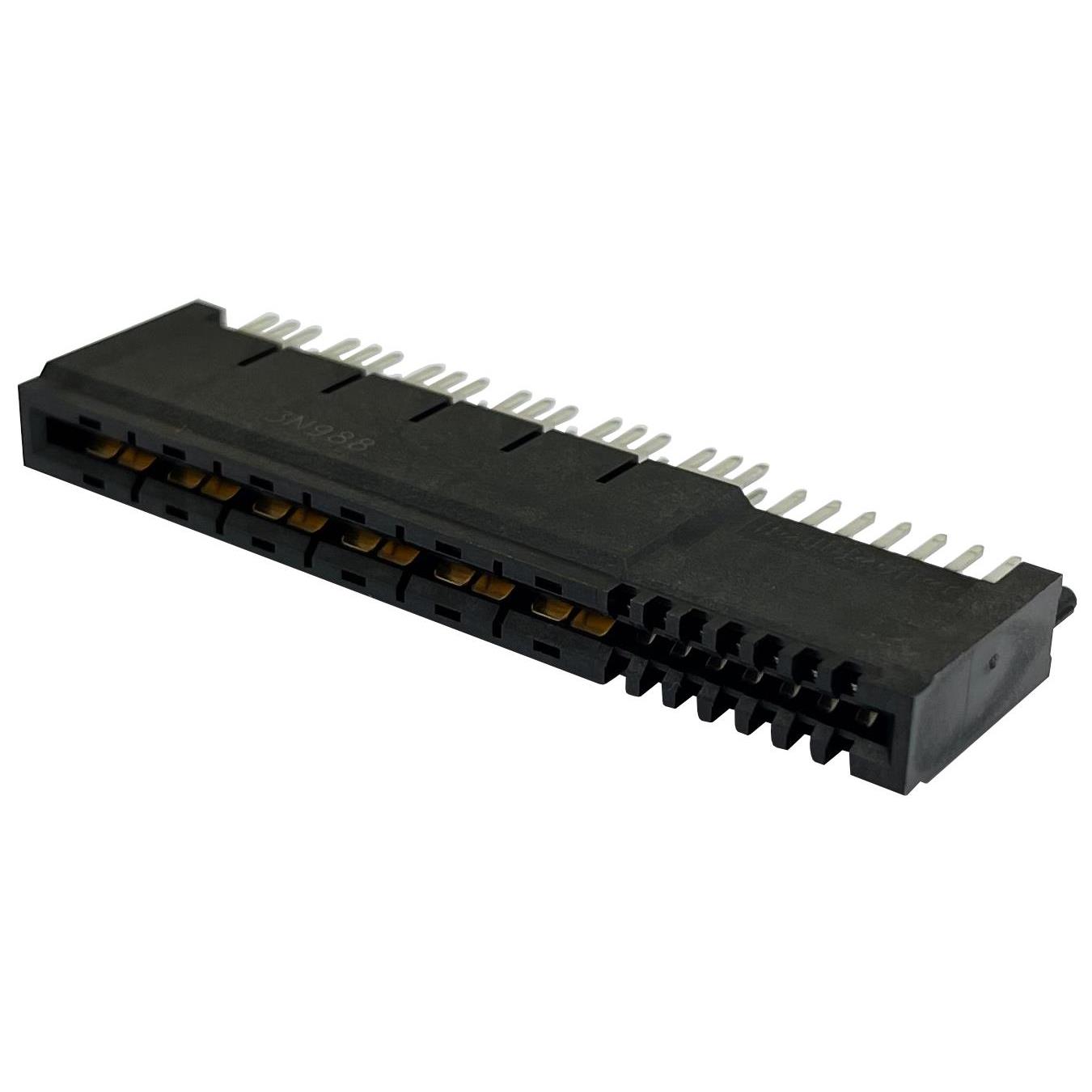

70280-1015 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists BellWether. Its product description is CON EDGE CRPS 50POS HPSU VER DIP. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 70280-1015
- Description：CON EDGE CRPS 50POS HPSU VER DIP
- Series：-
- Mfr：BellWether
- Package：Tray
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：36;14
- Number of Positions：50
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：-
- Read Out：Dual
- Features：Board Guide
- Mounting Type：-
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 70280-1015
Edgeboard Connectors Overview
The BellWether 70280-1015 is a 50-position female edgeboard connector designed for dual-edge card insertion. It features gold-plated contacts and a black housing, suitable for high-performance signal transmission. The component operates within a temperature range of -40°C to 105°C. This vertical DIP-style connector ensures reliable mechanical retention and electrical continuity in dense board-to-board applications.
Edgeboard Connectors Feature Summary
- Dual-edge contact configuration for secure card insertion
- Gold-plated contact finish for corrosion resistance
- Vertical through-hole mounting design
Edgeboard Connectors Applications
- High-speed data interface modules
- Telecommunications equipment backplanes
- Industrial control system boards
Edgeboard Connectors Procurement Notes
Verify the specific datasheet revision and RoHS compliance status directly with BellWether or authorized distributors before procurement. Confirm that the operating temperature range of -40°C to 105°C aligns with your environmental requirements. Ensure the 50-position pitch matches your PCB layout specifications to avoid mechanical interference during assembly.
Edgeboard Connectors Selection Notes
Select this connector when a robust dual-edge female interface is required for 50-position signal routing. The gold plating offers superior conductivity compared to tin variants. Consider the vertical DIP form factor for standard board stacking heights. Validate that the black housing material meets your flame retardancy standards for the intended application environment.
Edgeboard Connectors Part Context
This part belongs to BellWether's Edgeboard Connectors series, which focuses on reliable interconnect solutions for complex electronic assemblies. The manufacturer specializes in connectors, cables, and FPCA products, emphasizing quality management systems including ISO9001 and IATF16949 certifications for automotive and industrial sectors.
Edgeboard Connectors Replacement Considerations
No public confirmed substitute part numbers are available for this specific model. Cross-referencing requires matching the 50-position count, dual-edge geometry, and vertical DIP footprint precisely. Consult BellWether engineering for potential alternative series components if exact replacement is unavailable.
Edgeboard Connectors FAQ
What is the contact finish material?
The contacts feature a gold plating finish to ensure reliable signal transmission and corrosion resistance.
Is this connector compatible with single-edge cards?
No, this is a dual-edge connector designed specifically for cards with contacts on both edges.
