70316-E458

Headers, Male Pins Overview

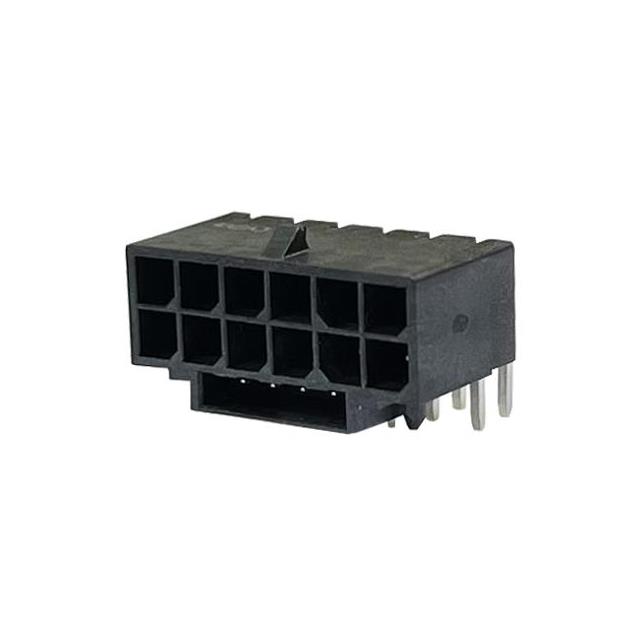

The BellWether 70316-E458 is a male pin connector header designed for through-hole mounting. It features a right-angle configuration with 16 total positions, specifically arranged as 12 power contacts and 4 signal contacts. The component utilizes sturdy copper alloy materials for the contacts and robust glass-filled thermoplastic insulation. This specific part number represents a standard configuration within the BellWether connector series.

Headers, Male Pins Feature Summary

• Right-angle male pin header design for PCB mounting
• Mixed contact arrangement combining power and signal lines
• Construction using copper alloy contacts and glass-filled thermoplastic insulation

Headers, Male Pins Applications

• Industrial control systems requiring mixed signal and power connections
• Embedded storage interfaces
• Communication infrastructure equipment

Headers, Male Pins Procurement Notes

Verify the exact suffix against official BellWether documentation to ensure correct contact plating and material specifications. Confirm that the 12 power and 4 signal position layout matches the target circuit requirements before procurement.

Headers, Male Pins Selection Notes

Select this model when a right-angle through-hole header with mixed power and signal capabilities is required. Ensure the PCB footprint accommodates the specific 16-position layout and verify clearance for the right-angle profile in the assembly design.

Headers, Male Pins Part Context

This component belongs to the BellWether electronic connector portfolio, which includes headers, cables, and specialized interconnect solutions. The company focuses on manufacturing components for industrial, automotive, and medical applications where reliability is critical.

Headers, Male Pins Replacement Considerations

Cross-reference with other BellWether headers in the same series for mechanical compatibility. Verify pin count and pitch dimensions against alternative suppliers if sourcing from different manufacturers.
