70316-E4C8

Headers, Male Pins Overview

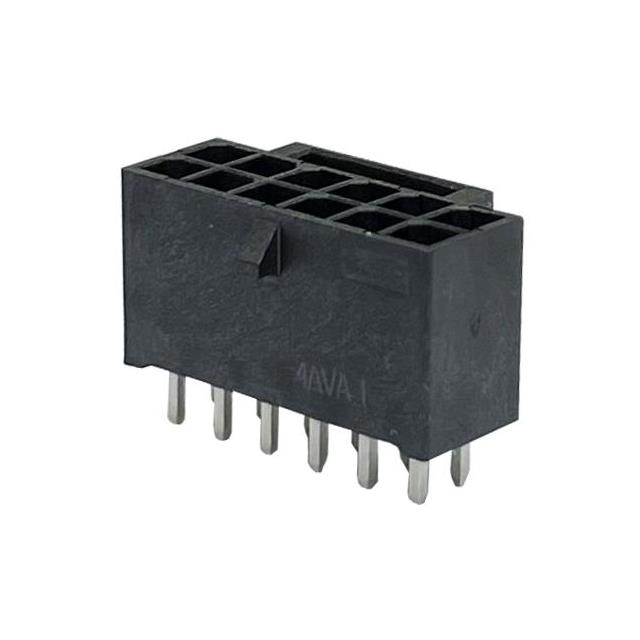

The BellWether 70316-E4C8 is a vertical male pin header connector designed for PCI Express (PCIe) and CEM5 applications. It features a 12-pin configuration with a 4-column layout, specifically engineered for high-speed data transmission in server and storage environments. The component utilizes tin plating on the contacts to ensure reliable signal integrity and corrosion resistance. This connector supports vertical board mounting, facilitating efficient space utilization in dense electronic assemblies where height constraints are critical.

Headers, Male Pins Feature Summary

• Vertical male pin header design optimized for PCIe and CEM5 interface standards
• Tin-plated contacts provide durable connection surfaces with enhanced signal reliability
• Compact 12-pin, 4-column footprint enables efficient density in constrained PCB layouts

Headers, Male Pins Applications

• PCI Express peripheral interconnects
• CEM5 module connections
• Server backplane interfaces
• High-density storage system connectors

Headers, Male Pins Procurement Notes

Verify the specific contact plating thickness and material composition against the official BellWether datasheet to ensure compliance with long-term reliability requirements. Confirm that the vertical mounting style aligns with the mechanical constraints of the target PCB assembly. Check for any specific RoHS or REACH compliance documentation required for the intended market. Ensure the supplier provides traceability for the original manufacturer components.

Headers, Male Pins Selection Notes

Select this connector when a vertical orientation is mandatory for PCIe or CEM5 applications requiring a 12-pin interface. Evaluate the mechanical stability provided by the vertical header design against the thermal and vibration stresses of the operating environment. Consider the tin plating durability if the application involves frequent mating cycles. Compare the physical dimensions against available board space to ensure proper fit within the enclosure.

Headers, Male Pins Part Context

This component belongs to BellWether's portfolio of high-reliability interconnect solutions, focusing on advanced packaging and signal integrity for demanding industrial and computing applications. The company specializes in connectors that support complex data transmission needs. The 70316-E4C8 represents a specialized solution for vertical mounting scenarios, addressing the need for compact, robust connections in modern electronic systems.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available.
