70367-6624

Headers, Male Pins Overview

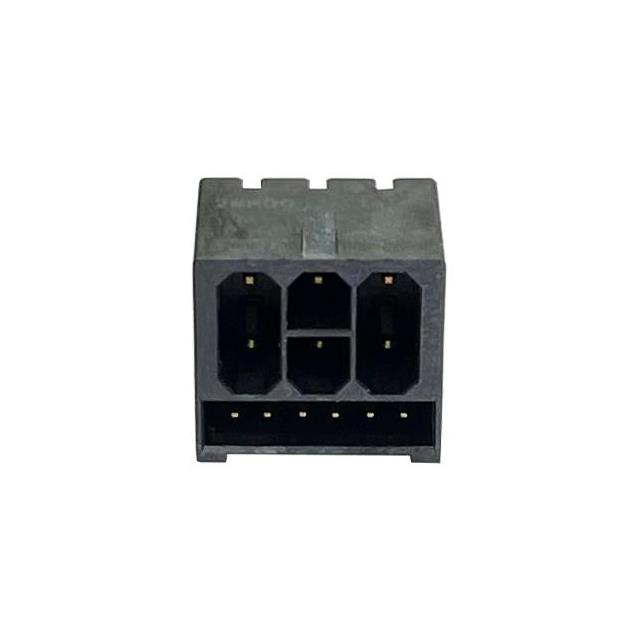

The BellWether 70367-6624 is a right-angle male pin header connector designed for mixed-signal applications. It features a 12-position configuration with a dual-pitch arrangement of 3.0 mm and 1.5 mm to accommodate both power and signal lines. The unit supports a rating voltage of 600V and is supplied in tape-and-reel packaging for automated assembly processes.

Headers, Male Pins Feature Summary

• Right-angle DIP header construction for space-efficient board mounting
• Mixed-pitch design integrating 3.0 mm and 1.5 mm contact spacing
• Dual-purpose layout separating six power contacts from six signal contacts

Headers, Male Pins Applications

• Industrial control systems requiring robust power and signal separation
• Embedded storage interfaces needing high-voltage isolation
• Communication infrastructure equipment utilizing mixed-signal connectivity

Headers, Male Pins Procurement Notes

Verify the specific pitch configuration required for your PCB footprint, as this component utilizes a mixed 3.0 mm and 1.5 mm design rather than uniform spacing. Confirm that the 600V rating aligns with your system's electrical requirements. Ensure compatibility with automated pick-and-place equipment due to the tape-and-reel packaging format. Cross-reference the manufacturer part number against official BellWether documentation to confirm current production status and availability.

Headers, Male Pins Selection Notes

Select this connector when a compact right-angle solution is needed for mixed-signal routing. The distinct pitch separation allows for optimized trace routing between high-current power lines and sensitive signal traces. Consider the 600V rating for applications demanding higher isolation capabilities compared to standard low-voltage headers. Evaluate the mechanical stability provided by the DIP style for environments subject to vibration or physical stress during operation.

Headers, Male Pins Part Context

BellWether specializes in connectors, cables, and metal injection molding components for critical industries. This header belongs to their general interconnect portfolio, focusing on reliable performance in industrial and communication sectors. The product represents a standard solution for board-to-board or cable-to-board connections where spatial constraints and signal integrity are primary design considerations.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Due to the unique mixed-pitch configuration (3.0 mm/1.5 mm) and right-angle form factor, generic replacements may not fit existing PCB footprints or meet voltage ratings. Verify exact dimensional tolerances before considering alternative suppliers.
