Headers, Male Pins Overview

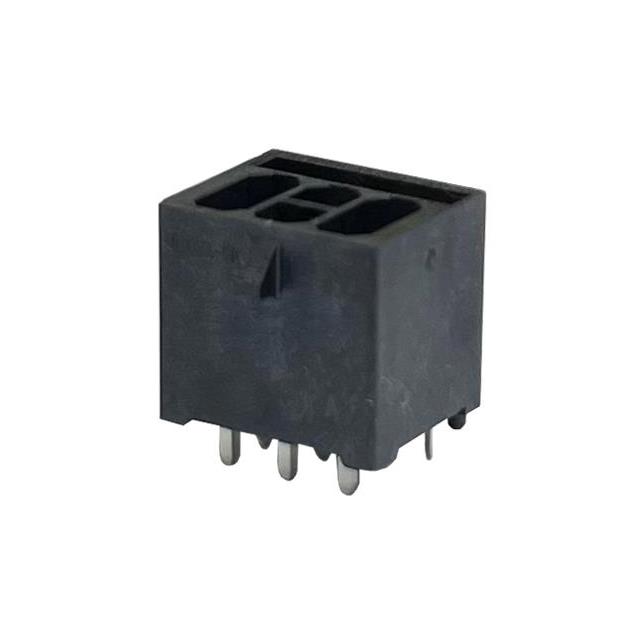

The BellWether 70368-6614 is a vertical male pin header connector designed for through-hole mounting. It features a 12-position configuration, comprising 6 power contacts and 6 signal contacts. The component is rated for a voltage of 600V and includes board guide features to ensure precise alignment during assembly. Packaged in tape and reel format, this header supports high-density interconnect applications requiring robust power and signal transmission capabilities.

Headers, Male Pins Feature Summary

• Vertical orientation design for space-constrained PCB layouts
• Integrated board guide mechanism for accurate insertion
• Combined power and signal contact arrangement

Headers, Male Pins Applications

• High-density server backplanes
• Power distribution modules
• Industrial control system interconnects

Headers, Male Pins Procurement Notes

Verify the specific datasheet version to confirm current manufacturing status and compliance certifications. Ensure that the vertical DIP package dimensions match the target PCB footprint requirements. Confirm that the 600V rating aligns with the operational electrical environment of the intended application to prevent insulation breakdown or safety hazards.

Headers, Male Pins Selection Notes

Select this component when a vertical header with mixed power and signal positions is required. The 12-position layout offers a balanced solution for systems needing both high-current paths and data lines in a single connector interface. Consider the through-hole mounting method for mechanical stability in vibration-prone environments.

Headers, Male Pins Part Context

This part belongs to the M-PIC series from BellWether, which focuses on modular power and interconnect solutions. The 70368-6614 specifically addresses the need for compact, high-voltage headers in modern electronic architectures where space efficiency and reliable connectivity are critical for system performance.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Cross-referencing requires matching the 12-position vertical DIP configuration, 600V rating, and combined power/signal pinout to ensure functional compatibility.
