Product Detailed Parameters
- Description：3 ELEMENT YAGI 380-430 MHZ
- Series：-
- Mfr：Amphenol Procom
- Package：Box
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：405MHz
- Frequency Range：380MHz ~ 430MHz
- Antenna Type：Yagi, 3-Element
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：5dBd
- Features：Cable - 3m
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：66.929" (170.00cm)
- Applications：-
- Power - Max：150 W
Download product information
Overview

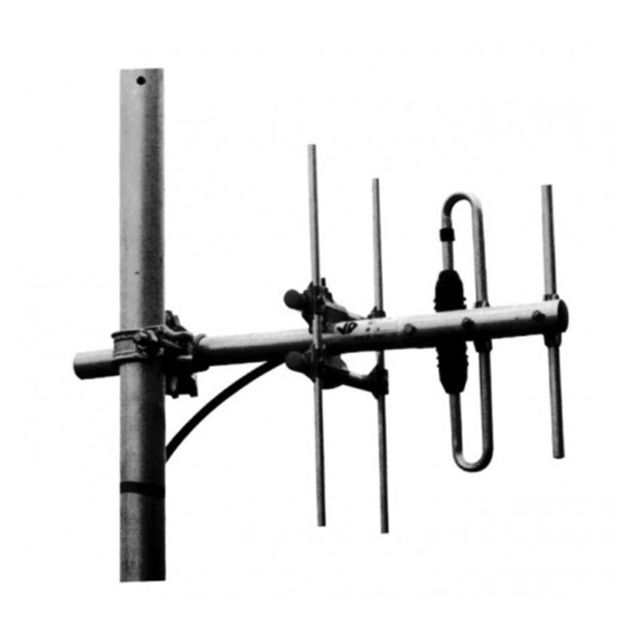

The Amphenol Procom 7040380 is a three-element Yagi antenna designed for the UHF frequency band, specifically covering 380 to 430 MHz. It features a center frequency of 405 MHz and utilizes an N female connector for RF interfacing. The unit is constructed with a black finish and is intended for base station applications within the international aircraft band. This active component provides directional signal transmission and reception capabilities suitable for specialized communication infrastructure.
Feature Summary
- Three-element Yagi design for directional gain
- UHF band operation from 380 to 430 MHz
- N female connector interface
Applications
- International aircraft band base stations
- UHF communication infrastructure
- Directional RF signal transmission
Procurement Notes
Verify the specific part number 7040380 against official Amphenol Procom documentation to confirm current production status and technical specifications. Ensure compatibility with existing N female connector systems and verify that the 380-430 MHz frequency range aligns with regulatory requirements for the intended deployment environment.
Selection Notes
Select this model when a compact, three-element directional solution is required for the 380-430 MHz spectrum. Consider its suitability for fixed base station installations where moderate gain and narrow beamwidth are advantageous. Evaluate environmental durability requirements against the standard black finish construction before finalizing the procurement decision.
Part Context
This component belongs to the Amphenol Procom RF antenna portfolio, which specializes in solutions for aviation and public safety communications. The 7040380 represents a focused UHF product line distinct from their broader omni-directional or VHF offerings, targeting specific frequency allocations for aircraft band operations.
Replacement Considerations
For direct functional substitution, consider the Amphenol Procom 7043410, which operates in the same 380-430 MHz range but offers an eight-element configuration for higher gain. Verify connector type and polarization alignment when evaluating alternative models.
