7050S21200BMDAHHGEK-CT

Crystals Overview

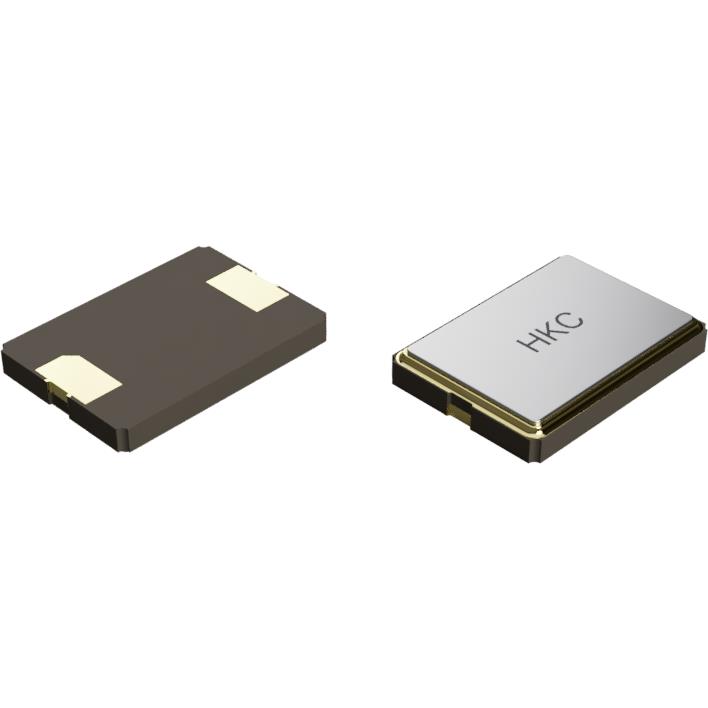

The HKC 7050S21200BMDAHHGEK-CT is a 12 MHz crystal oscillator housed in a 2-SMD, No Lead package. It features a load capacitance of 16 pF and an equivalent series resistance (ESR) of 50 Ohms. The component operates within a temperature range of -40°C to +85°C and maintains a frequency stability of ±50 ppm.

Crystals Feature Summary

• Provides stable 12 MHz clock signals for digital circuits
• Designed for surface-mount integration without leaded packaging
• Operates reliably across industrial temperature ranges

Crystals Applications

• Communications equipment
• Wired networking systems
• Enterprise systems

Crystals Procurement Notes

Verify the exact datasheet specifications directly with HKC or authorized distributors before procurement. Confirm that the 2-SMD no-lead package dimensions align with your PCB footprint requirements. Ensure the ±50 ppm stability meets your system's timing tolerance needs. Check for any specific handling instructions regarding the surface-mount technology.

Crystals Selection Notes

Select this component when a precise 12 MHz reference is required for wired networking or enterprise hardware. The 16 pF load capacitance must match the circuit design. Consider the 50 Ohm ESR for impedance matching. The wide operating temperature range supports diverse environmental conditions.

Crystals Part Context

HKC is a recognized manufacturer of timing components, including crystals and oscillators. This part belongs to their series of surface-mount devices designed for high-reliability applications in communication and computing infrastructure.

Crystals Replacement Considerations

Consult official substitution lists from HKC for direct equivalents. Verify that any alternative part matches the 12 MHz frequency, 16 pF load capacitance, and 2-SMD package type. Cross-reference electrical parameters to ensure compatibility.
