7050S21600BMDAHHGCA-CT

Crystals Overview

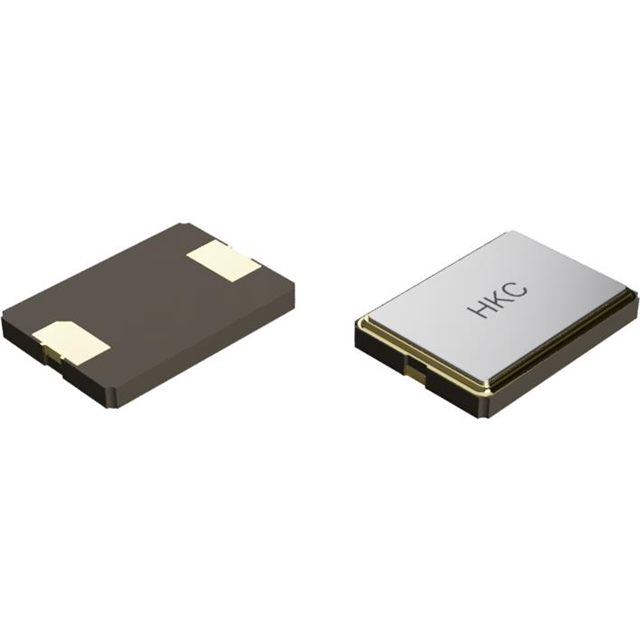

The HKC 7050S21600BMDAHHGCA-CT is a surface-mount crystal oscillator operating at a fundamental frequency of 16 MHz. It features a load capacitance of 16 pF and a maximum equivalent series resistance (ESR) of 30 Ohms. The component operates within an industrial temperature range of -20°C to +70°C with a frequency tolerance of ±50 ppm. It utilizes a 2-SMD, no lead package configuration for integration into compact electronic circuits.

Crystals Feature Summary

• Provides stable 16 MHz clock signals for digital circuit timing applications
• Designed for surface-mount assembly using a 2-SMD no-lead package format
• Operates reliably across the specified industrial temperature range

Crystals Applications

• General-purpose digital logic timing references
• Microcontroller clock source generation
• Communication interface synchronization circuits

Crystals Procurement Notes

Verify the specific manufacturer datasheet for the 7050S21600BMDAHHGCA-CT to confirm exact mechanical dimensions and soldering profile requirements. Ensure that the supplier provides documentation confirming the component meets the stated 16 MHz frequency and 16 pF load capacitance specifications. Cross-reference the part number with official HKC component lists to validate authenticity and current production status before finalizing procurement orders.

Crystals Selection Notes

Select this component when a 16 MHz reference signal is required for designs utilizing 16 pF load capacitors. The ±50 ppm tolerance suits standard digital applications where high precision is not critical. Consider the 2-SMD package size constraints during PCB layout planning. Verify that the operational temperature range of -20°C to +70°C aligns with the environmental conditions of the target system.

Crystals Part Context

This part belongs to the HKC family of passive electronic components, specifically quartz crystals used for frequency control. Unlike the HKC brand known for display monitors, this component represents the company's semiconductor or passive component division offerings. These crystals are essential for providing precise timing bases in various consumer and industrial electronics, distinct from the visual display products also associated with the HKC brand name.

Crystals Replacement Considerations

Consult official substitution guides for compatible 16 MHz crystals with identical 16 pF load capacitance and 2-SMD package dimensions. Verify that alternative parts meet the same ±50 ppm tolerance and ESR limits. Ensure replacement components support the required -20°C to +70C operating range.
