7050S42500BMDAJEDCA-CT

Crystals Overview

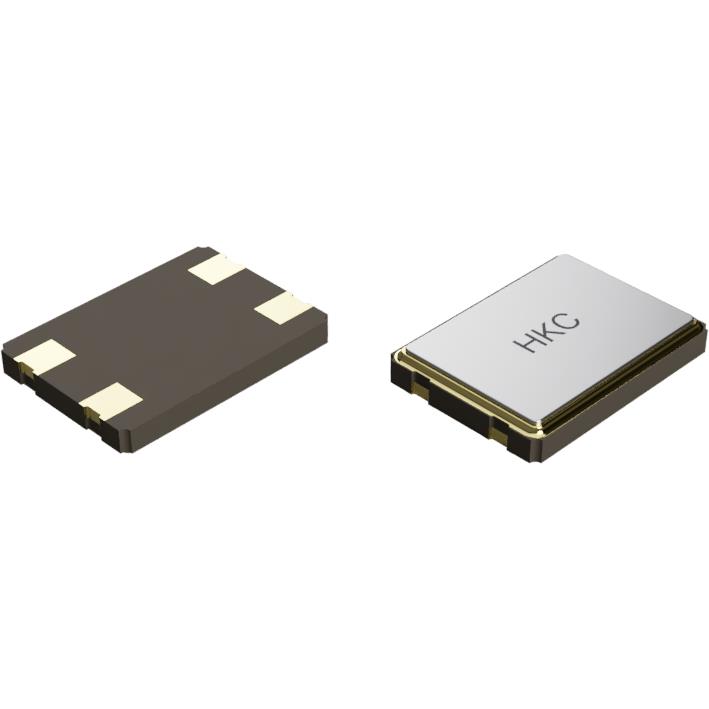

The HKC 7050S42500BMDAJEDCA-CT is a surface-mount quartz crystal resonator operating at a fundamental frequency of 25 MHz. It features a ±25 ppm frequency tolerance and a load capacitance of 18 pF. The component exhibits an equivalent series resistance (ESR) of 30 Ohms and utilizes a 4-SMD, No Lead package configuration.

Crystals Feature Summary

• Provides stable oscillation for precision timing applications
• Designed for surface-mount assembly processes
• Ensures reliable frequency generation in electronic circuits

Crystals Applications

• General-purpose digital circuit timing
• Microcontroller clock sources
• Communication interface synchronization

Crystals Procurement Notes

Verify the complete part number against official HKC documentation to ensure correct suffix alignment. Confirm that the specific package variant matches the required PCB footprint. Request current datasheets to validate frequency stability and electrical parameters prior to integration.

Crystals Selection Notes

Select this component when a 25 MHz reference with 18 pF load capacitance is required. Ensure the system design accommodates the specified ESR value. Verify that the ±25 ppm tolerance meets the application's frequency accuracy requirements.

Crystals Part Context

This component belongs to the HKC family of quartz crystal resonators manufactured by Hong Kong X'tals Limited. These devices are engineered for high reliability and consistent performance in various electronic systems requiring precise frequency control.

Crystals Replacement Considerations

Consult official HKC substitution guides or authorized distributors for verified compatible alternatives. Do not assume interchangeability based solely on frequency and package dimensions without confirming electrical parameter compatibility.
