7050XOM2500BMC13DCC-CT

Oscillators Overview

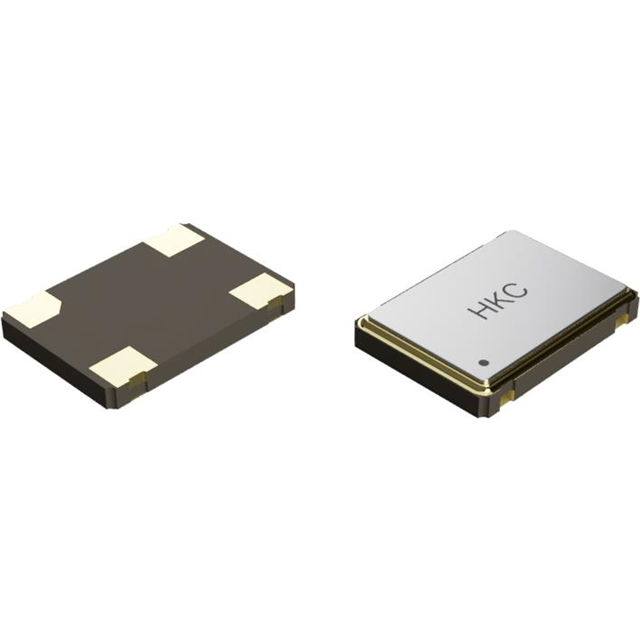

The HKC 7050XOM2500BMC13DCC-CT is a standard crystal oscillator (XO) operating at 25 MHz. It utilizes HCMOS output logic and requires a 3.3V supply voltage. The device features a frequency stability of ±50ppm and operates within a temperature range of -40°C to +85°C. It is housed in a compact 4-SMD, no-lead package with dimensions of 7.00mm x 5.00mm.

Oscillators Feature Summary

• Generates a stable 25 MHz clock signal using HCMOS output interface.
• Operates reliably across industrial temperature ranges from -40°C to +85°C.
• Provides precise frequency stability of ±50ppm for synchronized system timing.

Oscillators Applications

• Digital signal processing systems requiring precise clock synchronization.
• Communication equipment utilizing standard CMOS-compatible interfaces.
• Industrial control units operating in variable thermal environments.

Oscillators Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to ensure correct packaging and tolerance specifications. Confirm that the HCMOS output voltage levels match the receiving circuit's input requirements. Check RoHS compliance status if environmental regulations apply to the final assembly. Ensure the 3.3V supply rail is stable within operational limits.

Oscillators Selection Notes

Select this component when a 25 MHz frequency is required with HCMOS compatibility. Consider the ±50ppm stability requirement against system jitter budgets. Evaluate the 7.00mm x 5.00mm footprint against PCB space constraints. Verify that the -40°C to +85°C range meets the environmental conditions of the target application.

Oscillators Part Context

This part belongs to the 7050XO series of standard oscillators manufactured by HKC. The series offers various frequencies and packages, but this specific model is defined by its 25 MHz output and 4-SMD form factor. It serves as a primary clock source for digital circuits requiring low phase noise and reliable performance.

Oscillators Replacement Considerations

Cross-reference with other 25 MHz HCMOS oscillators in the 7050XO series or equivalent packages. Ensure substitute parts match the 3.3V supply and ±50ppm stability. Verify pinout compatibility for direct replacement without PCB modification.
