70680-J845

Edgeboard Connectors Overview

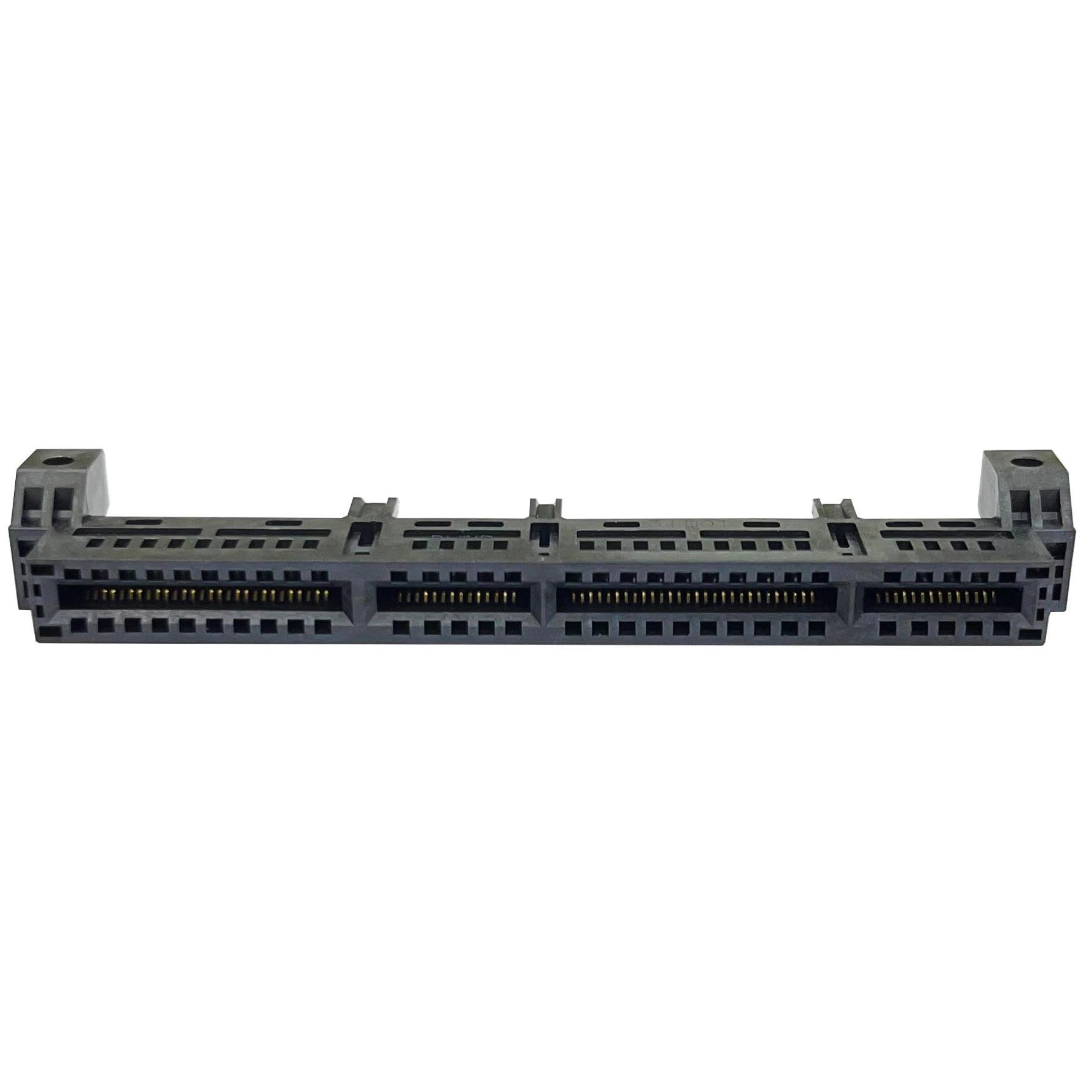

The BellWether 70680-J845 is a female edgeboard connector designed for high-density signal transmission. It features a dual-edge configuration with 168 positions, accommodating precise board-to-board or backplane connections. The contact interface utilizes gold plating to ensure reliable conductivity and corrosion resistance over repeated mating cycles. The housing is constructed from black material, providing visual identification and structural integrity within complex electronic assemblies.

Edgeboard Connectors Feature Summary

• Dual-edge design facilitates secure connection to printed circuit boards
• Gold-plated contacts provide durable electrical interfaces
• High-density 168-position layout supports extensive signal routing

Edgeboard Connectors Applications

• Data center server interconnects
• Telecommunications infrastructure equipment
• High-performance computing systems

Edgeboard Connectors Procurement Notes

Verify the specific suffix J845 against official BellWether documentation to confirm exact pinout and mechanical dimensions. Ensure compatibility with mating edge cards regarding thickness and guide keying. Cross-reference the datasheet for environmental ratings and operating temperature ranges before integration into final designs.

Edgeboard Connectors Selection Notes

Select this component based on the requirement for a 168-position female connector with dual-edge engagement. Confirm that the gold contact finish meets the application's conductivity standards. Evaluate the black housing material for thermal and mechanical suitability within the target enclosure environment.

Edgeboard Connectors Part Context

This part belongs to BellWether's edgeboard connector portfolio, which targets high-reliability applications in data centers and telecommunications. The series emphasizes robust mechanical retention and consistent electrical performance for critical system interconnections.

Edgeboard Connectors Replacement Considerations

Consult official BellWether substitution guides for verified equivalents. Generic connectors may lack the specific dual-edge geometry and 168-position density required for proper fit and function.
