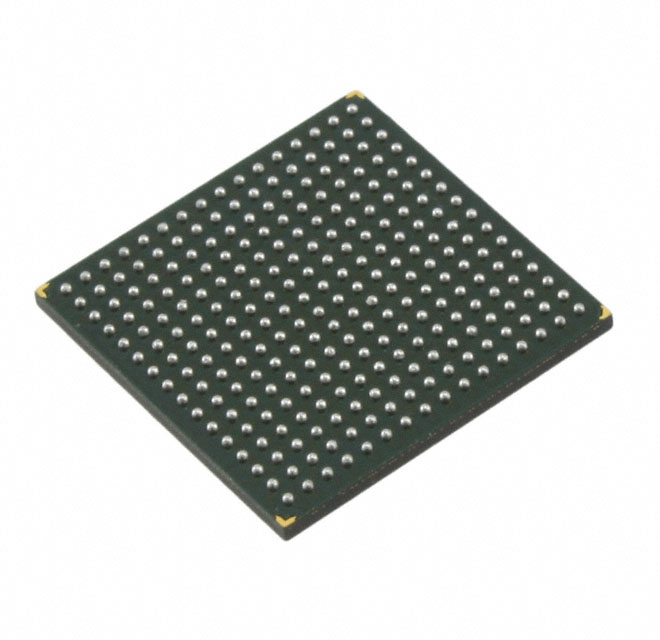

70T3509MS133BPG

$397.92

Description：IC SRAM 36MBIT PAR 256CABGA
Series：-
Mfr：Renesas Electronics Corporation
Package：Tray

SKU:be4c2c2fe1a1 Category: Memory IC Brand: Renesas Electronics Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

70T3509MS133BPG is listed in the Memory IC range at ChipApex. The manufacturer field lists Renesas Electronics Corporation. Its product description is IC SRAM 36MBIT PAR 256CABGA. Review the specifications below when checking this part for your BOM.

Memory IC specifications for 70T3509MS133BPG

Description：IC SRAM 36MBIT PAR 256CABGA
Series：-
Mfr：Renesas Electronics Corporation
Package：Tray
Memory Type：Volatile
Memory Format：SRAM
Technology：SRAM - Dual Port, Synchronous
Memory Size：36Mbit
Memory Organization：1M x 36
Memory Interface：Parallel
Clock Frequency：133 MHz
Write Cycle Time - Word, Page：-
Voltage - Supply：2.4V ~ 2.6V
Operating Temperature：0°C ~ 70°C (TA)
Mounting Type：Surface Mount
Package / Case：256-BGA
Supplier Device Package：256-CABGA (17x17)
Access Time：4.2 ns
Grade：-
Qualification：-

Memory IC datasheet and documents for 70T3509MS133BPG

70T3509MS133BPG

Memory IC Overview

The 70T3509MS133BPG is a synchronous dual-port static random-access memory (SRAM) manufactured by Renesas Electronics. It features a storage capacity of 36 Mbit organized as 1M x 36 bits. The device supports a maximum clock frequency of 133 MHz with an access time of 4.2 ns. It operates within a supply voltage range of 2.4 V to 2.6 V and draws a maximum power current of 1.12 A. The component utilizes a parallel interface and is housed in a 256-pin CABGA package suitable for surface mount technology. It functions within a commercial temperature range of 0°C to +70°C.

Memory IC Feature Summary

Synchronous dual-port architecture enabling simultaneous independent access to the same memory location from two separate ports.

Memory IC Applications

High-speed data buffering in telecommunications systems
Cache memory implementation in network processing equipment
Data storage in industrial control systems requiring fast access

Memory IC Procurement Notes

Verify the specific suffix BPG against official Renesas documentation to confirm package type and moisture sensitivity level. Ensure compatibility with 2.5V core voltage requirements. Check RoHS compliance status through authorized distributors. Confirm lead times and production cycles directly with the manufacturer or certified suppliers due to potential supply chain variations.

Memory IC Selection Notes

Select this component when a high-density 36-bit wide synchronous dual-port SRAM is required. It is suitable for applications needing 133 MHz operation speeds. Consider the 256-pin CABGA package constraints for PCB layout. Verify that the operating environment stays within the 0°C to +70°C commercial temperature range.

Memory IC Part Context

This part belongs to the 70T3509M series of synchronous dual-port SRAMs. These devices are designed for burst data flow applications. They offer low standby power modes controlled by chip enables. The series provides reliable performance for complex digital signal processing tasks.
