Product Detailed Parameters
- Description：RF ANT 875MHZ MOD SMA M SCREW
- Series：SmartDisc
- Mfr：Amphenol PCTEL
- Package：Box
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：875MHz, 2.2GHz
- Frequency Range：790MHz ~ 960MHz, 1.71GHz ~ 2.69GHz
- Antenna Type：Module
- Number of Bands：2
- VSWR：3
- Return Loss：-
- Gain：2.15dBi, 3.15dBi
- Features：Cable - 2.5m
- Termination：SMA Male
- Ingress Protection：IP67
- Grade：-
- Qualification：-
- Mounting Type：Screw Mount
- Height (Max)：1.024" (26.00mm)
- Applications：2G, 3G, 4G, NB-IoT
- Power - Max：10 W
Download product information
Overview

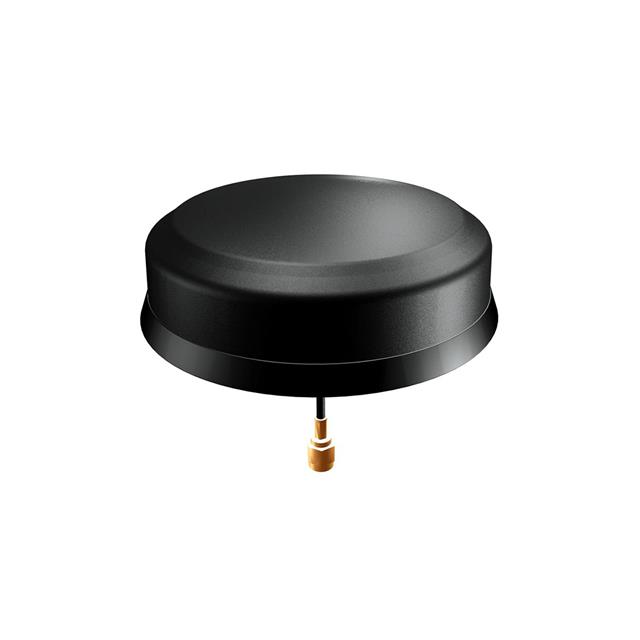

The Amphenol PCTEL 710211 is a rugged SmartDisc LTE/NB-IoT antenna designed for mobile and fixed installations. It operates within a frequency range of 698 MHz to 2.69 GHz, supporting 2G, 3G, 4G, and NB-IoT protocols. The unit features a 2.5-meter RG316 cable terminated with an SMA male connector. Mechanical specifications include screw mount installation, IP67 ingress protection, and a maximum height of 1.024 inches (26.00 mm).
Feature Summary
- Rugged construction engineered for demanding environments including smart city infrastructure and vehicle applications.
- Integrated 2.5-meter RG316 cable provides flexible connectivity options for module integration.
- IP67 rated enclosure ensures reliable performance against dust and water exposure in outdoor settings.
Applications
- Smart City EV-Charging stations
- Smart metering systems
- Vehicle telematics and tracking
Procurement Notes
Verify the specific datasheet version to confirm current regulatory compliance status and mechanical tolerances. Ensure that the SMA male termination matches the receiving equipment interface requirements. Confirm that the 2.5-meter cable length aligns with the physical layout constraints of the intended installation site to avoid signal degradation or routing issues.
Selection Notes
Select this model when a compact, weather-resistant solution is required for cellular IoT deployments. The integrated cable simplifies assembly compared to discrete components. Consider the operating frequency range to ensure compatibility with local network bands. Verify that the screw mount style fits the available surface area and structural integrity of the mounting location.
Part Context
This component belongs to the SmartDisc series by Amphenol PCTEL, which focuses on low-profile antennas for constrained spaces. The series targets critical connectivity needs in urban and industrial sectors. The 710211 variant specifically addresses LTE and NB-IoT requirements with a pre-terminated cable design for ease of deployment.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching the SMA male interface, 2.5-meter cable length, and IP67 rating with alternative vendors.
