710431

Overview

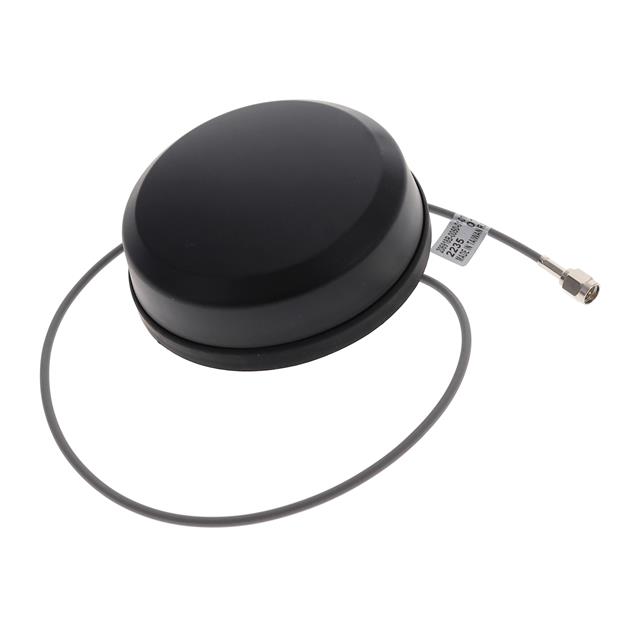

The Amphenol PCTEL 710431 is a dual-band SmartDisc™ dome antenna designed for rugged wireless connectivity. It operates across two frequency ranges: 2.4GHz to 2.69GHz and 4.9GHz to 5.9GHz, supporting UHF and SHF bands. The unit features an SMA male termination and offers IP67 ingress protection for environmental durability. Maximum height is 1.024 inches (26.00mm). Mounting options include adhesive backing or panel installation. The antenna supports WiFi applications with a VSWR of 1.8.

Feature Summary

• Dual-band operation covering 2.4GHz-2.69GHz and 4.9GHz-5.9GHz frequencies
• IP67 rated rugged design for harsh environmental conditions
• SmartDisc dome form factor with flexible mounting capabilities

Applications

• WiFi network infrastructure deployment
• Industrial IoT sensor connectivity
• Ruggedized wireless communication systems

Procurement Notes

Verify the specific datasheet version from Amphenol PCTEL to confirm current regulatory compliance and mechanical tolerances. Ensure the SMA male connector orientation matches the system interface requirements. Check for any recent updates to the SmartDisc series specifications that may affect integration parameters.

Selection Notes

Select this model when dual-band coverage in the 2.4GHz and 5GHz ISM bands is required within a low-profile dome enclosure. The IP67 rating makes it suitable for outdoor or industrial environments where dust and water resistance are critical. Consider the SMA male interface compatibility before procurement.

Part Context

This component belongs to the SmartDisc series by PCTEL, an Amphenol company. The series focuses on purpose-built antennas for reliable wireless connectivity. The 710431 specifically targets applications requiring robust performance in challenging environments while maintaining a compact physical footprint.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
