710633

$51.01

Description：RF ANT 789MHZ MODULE FAKRA M
Series：AllDisc-S
Mfr：Amphenol PCTEL
Package：Box

SKU:755a01091a97 Category: RF Antennas Brand: Amphenol PCTEL

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 789MHZ MODULE FAKRA M
Series：AllDisc-S
Mfr：Amphenol PCTEL
Package：Box
RF Family/Standard：Cellular, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：789MHz, 920MHz, 1.795GHz, 2.045GHz, 2.45GHz, 2.595GHz, 3.6GHz, 5.37GHz
Frequency Range：698MHz ~ 880MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.92GHz ~ 2.17GHz, 2.4GHz ~ 2.485GHz, 2.5GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.915GHz ~ 5.825GHz
Antenna Type：Module
Number of Bands：8
VSWR：2, 2.5, 3
Return Loss：-
Gain：4.5dBi, 5dBi, 5dBi, 4.5dBi, 3.5dBi, 3.5dBi, 7dBi, 6.5dBi
Features：Cable - 300mm
Termination：Fakra Male
Ingress Protection：IP6K9K
Grade：-
Qualification：-
Mounting Type：Screw Mount
Height (Max)：2.165" (55.00mm)
Applications：2G, 3G, 4G, 5G, Wi-Fi
Power - Max：10 W

Download product information

710633

Overview

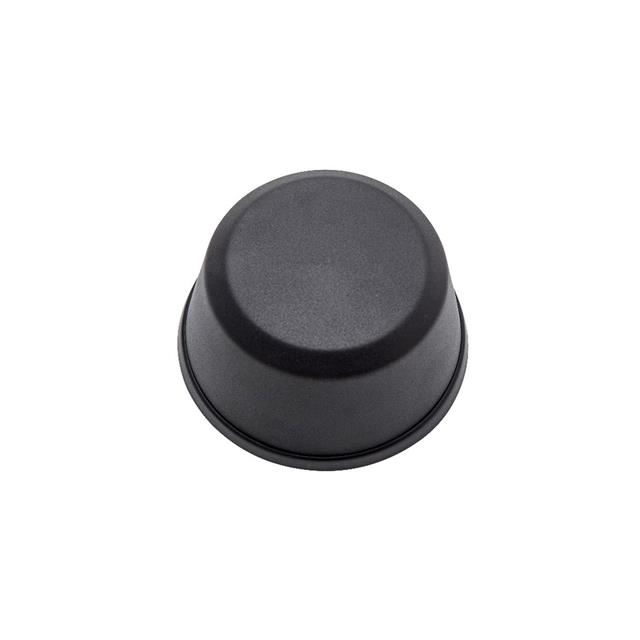

The Amphenol PCTEL 710633 is a screw-mount RF antenna designed for wireless connectivity applications. It supports multiple frequency bands including 2G, 3G, 4G, and 5G cellular networks, as well as Wi-Fi modules. The component utilizes a Fakra male interface for secure connection to host devices. This antenna is engineered for reliable signal transmission in mobile and fixed wireless environments.
