7110-RC

Overview

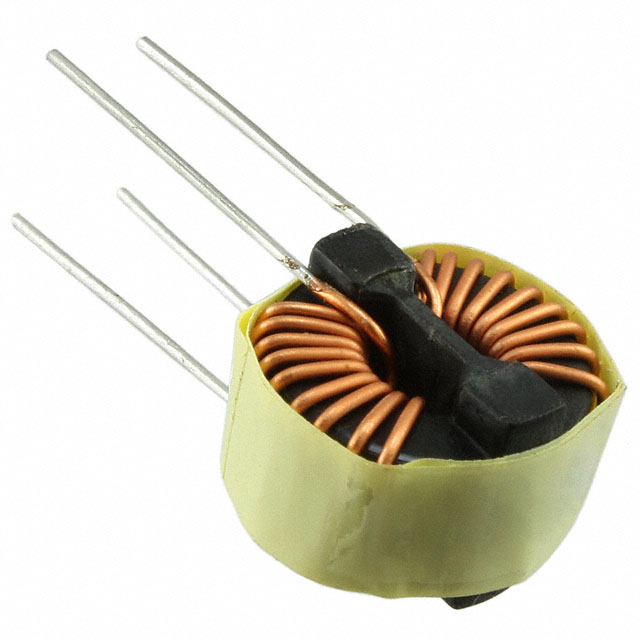

The Bourns 7110-RC is a through-hole common mode choke designed for EMI suppression in two-line circuits. It features an inductance of 510 µH at 1 kHz and supports a maximum current rating of 3A. The component exhibits a maximum DC resistance of 20 mOhms and operates within a temperature range of -55°C to +105°C. Physical dimensions include a length of 15.24 mm and a width of 11.43 mm. It provides high impedance at low frequencies and offers dielectric strength of 3750 Vrms, ensuring robust performance in demanding electronic applications.

Feature Summary

• High current capacity for efficient power line filtering
• High impedance characteristics at low frequencies for effective noise reduction
• Dielectric strength of 3750 Vrms for enhanced electrical isolation

Applications

• Power supply input filtering
• Data line protection in communication equipment
• EMI suppression in industrial control systems

Procurement Notes

Verify the specific datasheet version for the 7110-RC to confirm RoHS compliance status and lead-free certification details. Ensure that the required operating temperature range aligns with your system's environmental conditions. Cross-reference the physical footprint dimensions (15.24 mm x 11.43 mm) with your PCB layout to guarantee proper clearance and mounting compatibility before finalizing procurement orders.

Selection Notes

Select this component when high current handling up to 3A is required alongside significant low-frequency noise attenuation. The low DC resistance minimizes power loss in the signal path. Consider the through-hole package type if automated surface-mount assembly is not available or if mechanical stability against vibration is a priority. Verify that the 510 µH inductance meets the specific cutoff frequency requirements of your EMI filter design.

Part Context

This component belongs to Bourns' common mode choke series, which are engineered for electromagnetic interference suppression. These chokes are typically utilized in scenarios requiring the mitigation of common mode noise on differential pairs or power lines. The product line emphasizes reliability and consistent performance across various industrial and consumer electronics applications, supporting both standard and specialized filtering needs.

Replacement Considerations

Consult official Bourns documentation for direct cross-references. Ensure any substitute part matches the 510 µH inductance, 3A current rating, and 20 mOhm DCR specifications. Verify that the replacement maintains the same through-hole package dimensions and operating temperature range to ensure mechanical and thermal compatibility without redesigning the circuit board.

FAQ

What is the maximum current rating for the 7110-RC?

The maximum current rating is 3A.

Does the 7110-RC support high voltage isolation?

Yes, it provides a dielectric strength of 3750 Vrms.
