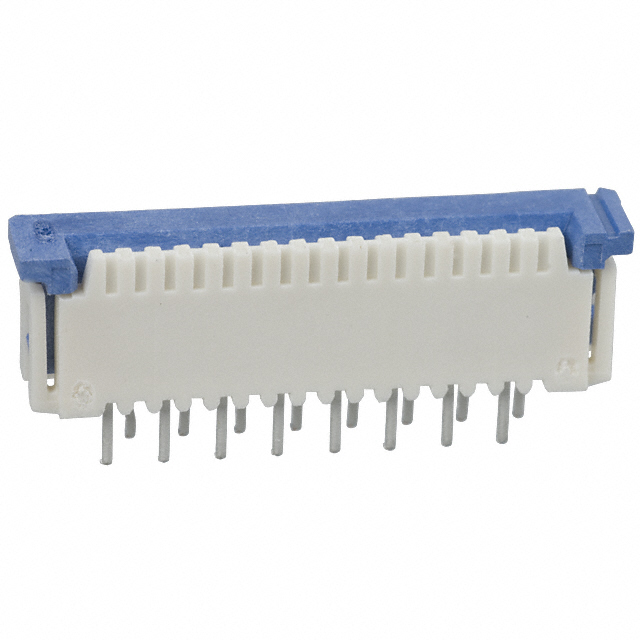

FFC, FPC (Flat Flexible) Connector Assemblies 712261625 product image

712261625

Description：CONN FFC VERT 16POS 1MM PCB
Series：71226
Mfr：Molex
Package：Tray

SKU:cb3a854843ec Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

712261625 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FFC VERT 16POS 1MM PCB. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 712261625

Description：CONN FFC VERT 16POS 1MM PCB
Series：71226
Mfr：Molex
Package：Tray
Flat Flex Type：FFC
Mounting Type：Through Hole
Connector/Contact Type：Contacts, Vertical - 1 Sided
Number of Positions：16
Pitch：0.039" (1.00mm)
Termination：Kinked Pin
FFC, FCB Thickness：0.30mm
Height Above Board：0.236" (6.00mm)
Locking Feature：Slide Lock
Cable End Type：Tapered
Contact Material：Phosphor Bronze
Contact Finish：Tin
Housing Material：Polyamide (PA), Nylon, Glass Filled
Actuator Material：Liquid Crystal Polymer (LCP), Glass Filled
Features：Zero Insertion Force (ZIF)
Voltage Rating：125V
Operating Temperature：-20°C ~ 80°C
Material Flammability Rating：UL94 V-0
