714-43-103-41-001000

$13.14

Description：CONN RCPT 3POS 0.1 GOLD PCB
Series：714
Mfr：Mill-Max Manufacturing Corp.
Package：Tube

SKU:87d721fee1d9 Category: Headers, Receptacles, Female Sockets Brand: Mill-Max Manufacturing Corp.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

714-43-103-41-001000 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Mill-Max Manufacturing Corp.. Its product description is CONN RCPT 3POS 0.1 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 714-43-103-41-001000

Description：CONN RCPT 3POS 0.1 GOLD PCB
Series：714
Mfr：Mill-Max Manufacturing Corp.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board
Number of Positions：3
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：1
Row Spacing - Mating：-
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Insulation Color：Black
Insulation Height：-
Contact Length - Post：0.134" (3.40mm)
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：-
Contact Finish - Post：Tin
Mated Stacking Heights：-
Ingress Protection：-
Features：Carrier
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 714-43-103-41-001000

714-43-103-41-001000

Headers, Receptacles, Female Sockets Overview

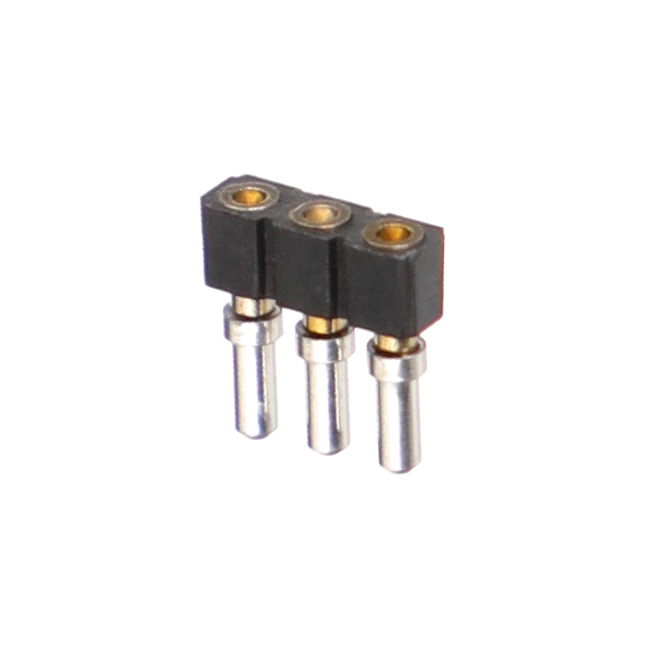

The Mill-Max 714-43-103-41-001000 is a standard receptacle carrier connector featuring three positions. It utilizes a 0.100 inch (2.54 mm) pitch for mating compatibility and employs through-hole termination for secure PCB mounting. The contact surfaces are gold-plated to ensure reliable signal transmission. Designed for board-to-board stacking applications, this component supports an operating temperature range of -55°C to 125°C.

Headers, Receptacles, Female Sockets Feature Summary

Standard receptacle carrier design for integrated circuit and component socketing
Gold-plated contacts provide corrosion resistance and stable electrical performance
Through-hole termination ensures robust mechanical attachment to printed circuit boards

Headers, Receptacles, Female Sockets Applications

Board-to-board stacking interconnects
IC and component socket carriers
General electronic assembly requiring low-profile connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific pin count and pitch requirements against the target application schematic. Confirm that the through-hole termination method aligns with the manufacturing process capabilities. Ensure the operating temperature range meets the environmental conditions of the final product deployment.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, multi-position receptacle is required for direct board stacking. The gold plating offers superior conductivity compared to tin variants. Consider the physical height constraints of the assembly to ensure compatibility with adjacent components.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Mill-Max 714 series, which specializes in standard receptacle carriers. These connectors are engineered for high-density applications where space efficiency is critical. The series provides various position counts to accommodate different integration needs while maintaining consistent electrical characteristics.
