7175890

Overview

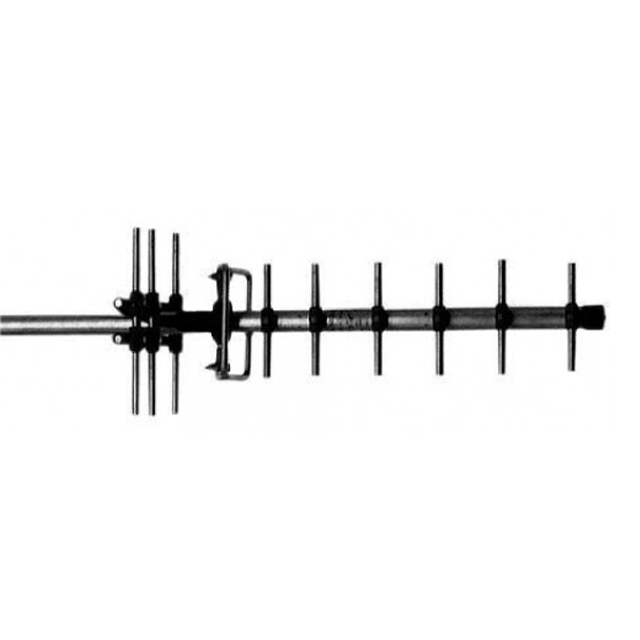

The Amphenol Procom 7175890 is an 8-element Yagi RF antenna designed for base station applications. It operates within a frequency range of 790 to 960 MHz, providing a gain of 12.1 dBi (10 dBd). The unit features an N-type female connector and is mounted via a bracket. It supports an output power of 150 W. Mechanical construction includes a 25 mm diameter aluminum boom and 10 mm diameter aluminum elements. The antenna connects via a 1-meter RG213/U cable.

Feature Summary

• Eight-element Yagi design for directional signal transmission
• Aluminum boom and element construction for durability
• Bracket mounting configuration for fixed installation

Applications

• Base station antenna systems
• Private network infrastructure
• Point-to-point communication links

Procurement Notes

Verify the specific frequency band requirements against the 790-960 MHz operational range before procurement. Confirm that the N-type female interface and 1-meter RG213/U cable length meet the site installation specifications. Ensure the 150 W power handling capacity aligns with the transmitter output to prevent component damage during operation.

Selection Notes

Select this model when high-gain directional performance is required in the 790-960 MHz spectrum. The 12.1 dBi gain makes it suitable for extending coverage distance compared to omnidirectional alternatives. Consider the physical dimensions of the 25 mm boom and the necessity of bracket mounting when evaluating spatial constraints at the deployment site.

Part Context

This component belongs to the Amphenol Procom antenna portfolio, which specializes in solutions for private networks and base stations. The product line focuses on robust connectivity hardware capable of withstanding environmental stressors while maintaining signal integrity for critical communication infrastructure deployments.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing feed lines and mounting structures if considering alternative models from the same manufacturer series.
