71918-210LF

Headers, Male Pins Overview

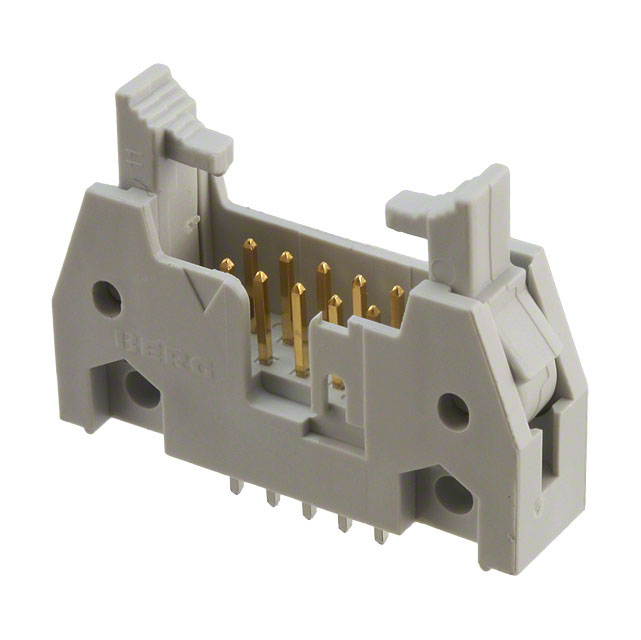

The Amphenol ICC (FCI) 71918-210LF is a vertical pin header connector from the Quickie series, designed for wire-to-board applications. It features 10 positions arranged in two rows with a 0.100-inch (2.54mm) pitch. The connector utilizes phosphor bronze contacts with gold plating and terminates via through-hole soldering. Key electrical ratings include a current capacity of 3A and an insulation resistance of 10 GOhms. The housing is constructed from gray glass-filled thermoplastic rated UL94 V-0, ensuring flame retardancy.

Headers, Male Pins Feature Summary

• Quickie series design with push-pull locking mechanism
• Gold-plated phosphor bronze contacts for reliable signal transmission
• UL94 V-0 rated glass-filled thermoplastic insulation
• Integrated keying slot and mounting flange for secure assembly

Headers, Male Pins Applications

• Industrial instrumentation and control systems
• Factory automation equipment connections
• IoT device interconnects
• Medical equipment circuit boards

Headers, Male Pins Procurement Notes

Verify component authenticity against official Amphenol ICC documentation. Confirm RoHS compliance status and check for recent Product Change Notices regarding material updates. Ensure storage conditions maintain moisture sensitivity level integrity prior to soldering.

Headers, Male Pins Selection Notes

Select this part for low-current DC applications requiring robust mechanical retention. The 3A rating suits general signal and power distribution. Verify board layout compatibility with the 2.90mm tail length and 17.40mm insulation height constraints.

Headers, Male Pins Part Context

Part of the Quickie family offering high-density interconnect solutions. Designed for mixed-signal environments where reliable contact performance under vibration is critical. Complements matching receptacles within the same pitch ecosystem.

Headers, Male Pins Replacement Considerations

Direct substitute: 71918-026LF. Verify pin count differences before substitution.
