71V424S15YG

Memory IC Overview

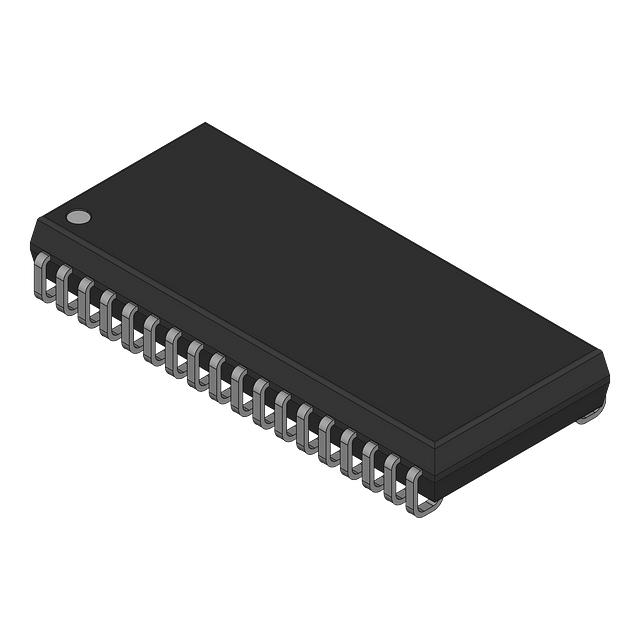

The IDT 71V424S15YG is a 4-megabit (4Mb) asynchronous static random-access memory (SRAM) integrated circuit manufactured by Integrated Device Technology. The device features a parallel interface and is organized as 512K words by 8 bits. It offers a maximum access time of 15 nanoseconds with a corresponding write cycle time of 15 nanoseconds. The component operates within a supply voltage range of 3.0 volts to 3.6 volts and supports surface-mount installation in a 36-lead Small Outline J-Lead (SOJ) package, specifically identified as 36-BSOJ with a width of 0.400 inches. The standard operating temperature range extends from 0°C to 70°C.

Memory IC Feature Summary

• Asynchronous parallel memory architecture providing independent read and write operations without external clock synchronization.

Memory IC Applications

• Data buffering in high-speed digital systems
• Cache memory implementation for microprocessors
• Storage for temporary data in embedded controllers

Memory IC Procurement Notes

Verify the specific suffix 'YG' against current manufacturer documentation to confirm pinout compatibility and lead finish specifications. Confirm RoHS compliance status as manufacturing processes may have evolved since initial production. Check for official End-of-Life notices or Product Change Notifications that might affect long-term availability or sourcing channels.

Memory IC Selection Notes

Select this component when a 4Mb capacity with 15ns speed is required in a 36-pin SOJ form factor. Ensure the design environment accommodates the 3V to 3.6V power supply requirements. Consider the commercial temperature range limits if operation outside 0°C to 70°C is necessary.

Memory IC Part Context

This part belongs to the IDT 71V424 family of high-speed SRAMs. It shares the same memory density and organization as variants like the 71V424S12YG but differs in access speed performance. The 71V424 series is designed for applications requiring fast random access capabilities in compact surface-mount packages.

Memory IC Replacement Considerations

The 71V424S12YG is listed as an available alternative with faster 12ns access times. Verify pin-to-pin compatibility and electrical parameter alignment before substitution.
