7200AT14A2000001T

$0.36

Description：RF ANT 6200-8240MHZ CHIP SMD
Series：-
Mfr：Johanson Technology Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:99d1d0f0c362 Category: RF Antennas Brand: Johanson Technology Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 6200-8240MHZ CHIP SMD
Series：-
Mfr：Johanson Technology Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：General ISM
Frequency Group：Wide Band
Frequency (Center/Band)：7.22GHz
Frequency Range：6.2GHz ~ 8.24GHz
Antenna Type：Chip
Number of Bands：1
VSWR：-
Return Loss：3.5dB
Gain：3.5dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.016" (0.40mm)
Applications：General Purpose
Power - Max：3 W

Download product information

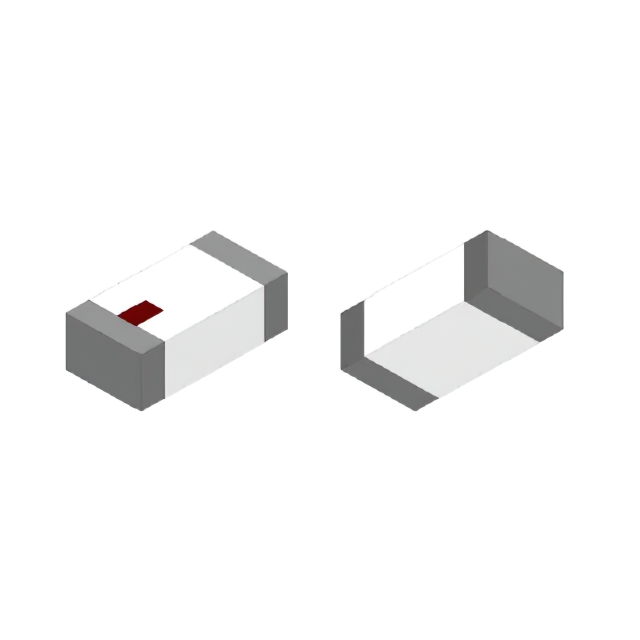

7200AT14A2000001T

Overview

The 7200AT14A2000001T is a general-purpose RF chip antenna manufactured by Johanson Technology Inc. utilizing Low Temperature Co-fired Ceramic (LTCC) technology. It operates within the frequency range of 6.2 GHz to 8.24 GHz, covering the 7.2 GHz band. The component is designed for surface mount applications and provides stable performance suitable for advanced wireless systems.

Feature Summary

Utilizes LTCC technology for embedding low- and high-dielectric constants
Designed for surface mount manufacturability in small form-factors
Provides stable RF performance across the specified high-frequency range

Applications

Advanced wireless communication systems
High-frequency application modules
General purpose RF signal transmission

Procurement Notes

Verify the specific LTCC construction details and impedance matching requirements against the official datasheet before integration. Confirm that the operating frequency range aligns with system specifications. Ensure surface mount process compatibility with the manufacturing line.

Selection Notes

Select this component when a compact, high-frequency solution is required for the 6.2–8.24 GHz range. Consider the LTCC technology benefits for dielectric embedding. Evaluate the surface mount package suitability for the target PCB design constraints.

Part Context

This part belongs to Johanson Technology's miniature RF ceramic chip antenna series. These antennas are characterized by their use of LTCC technology, which allows for complex internal structures. The series targets applications demanding high gain and small physical dimensions.
