726-057-525-101

Edgeboard Connectors Overview

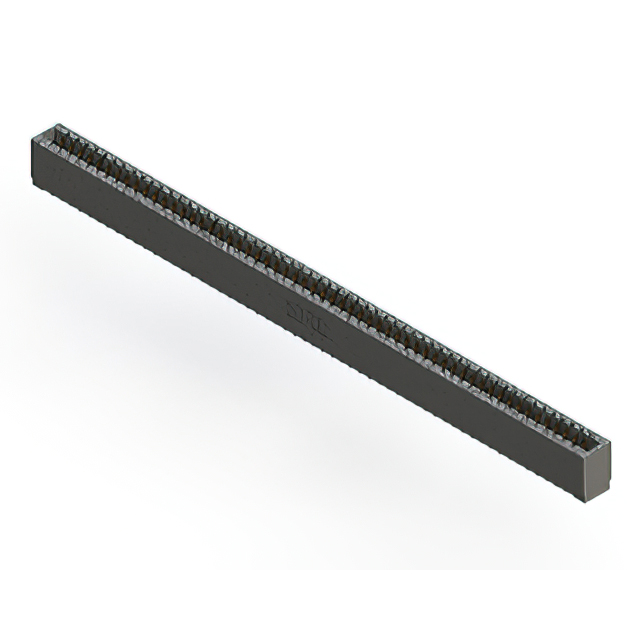

The EDAC Inc. part number 726-057-525-101 is a single-row female card edge connector from the 726 series. It features 57 positions with a contact pitch of 0.125 inches (3.18 mm). The connector utilizes gold-plated copper alloy contacts and is designed for panel mount installation via solder lugs. The housing is constructed from thermoplastic material, suitable for an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Single-row female configuration for standard card edge applications
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Panel mount design with solder lug termination for secure attachment

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connections
• Telecommunications equipment utilizing standard card edge interfaces
• Test and measurement instruments needing high-reliability interconnects

Edgeboard Connectors Procurement Notes

Verify component status as this specific part number may be discontinued or obsolete in current manufacturing lines. Confirm availability of recommended substitutes if original stock is unavailable. Ensure that any replacement components match the required pin count, pitch, and mounting style specifications for your application.

Edgeboard Connectors Selection Notes

Select this connector when a single-row interface with 57 positions and 0.125-inch spacing is required. Consider the panel mount form factor and solder lug termination method for assembly compatibility. Verify thermal ratings against operational environments and ensure housing material meets environmental exposure requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 726 series of edgeboard connectors, which are designed for high-reliability applications. The series offers various position counts and spacing options to accommodate different circuit board designs. These connectors are commonly used in industries demanding durable electrical connections under varying environmental conditions.

Edgeboard Connectors Replacement Considerations

Available substitutes include EDAC part numbers such as 726-057-545-101 and 726-057-527-101. Verify dimensional compatibility and electrical specifications before substitution. Ensure that alternative parts maintain the same single-row female configuration and mounting requirements.
