7355-V-RC

Overview

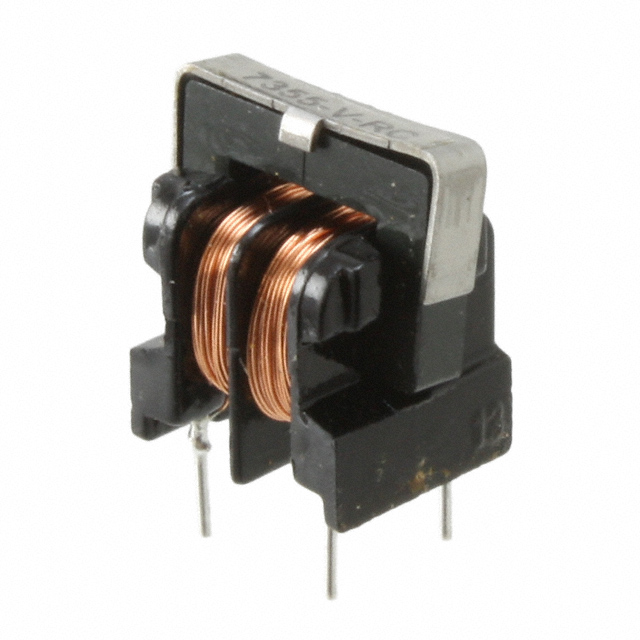

The Bourns 7355-V-RC is a vertical mount common mode choke from the 7300 series, designed for through-hole installation. It features two lines with an inductance of 10 mH at 1 kHz and a maximum DC resistance of 2.2 Ohms. The component supports a maximum DC current of 350 mA and operates within a temperature range of -55°C to +105°C. Its physical dimensions are 17 mm in length, 11 mm in width, and 17 mm in height.

Feature Summary

• Vertical mounting style for space-efficient circuit board integration
• Radial lead termination for standard through-hole assembly processes
• Dual-line configuration for effective common mode noise suppression

Applications

• EMI filtering in electronic equipment power supplies
• Signal line protection in data communication interfaces
• Noise suppression in industrial control systems

Procurement Notes

Verify the suffix 'V' confirms vertical orientation and '-RC' indicates RoHS compliance. Confirm package type matches radial through-hole requirements. Check datasheet for specific inductance tolerance and frequency response curves relevant to your application frequency.

Selection Notes

Select this component when vertical mounting is required for space constraints. Ensure the 350 mA current rating meets load requirements. Verify that the 10 mH inductance provides sufficient attenuation at target noise frequencies compared to lower or higher value alternatives in the series.

Part Context

This part belongs to the Bourns 7300 series of common mode chokes. The series offers various inductance values and current ratings. The 'V' designation specifically denotes vertical mounting, distinguishing it from horizontal variants like the 7355-H-RC.

Replacement Considerations

Consider Bourns 7355-H-RC for horizontal mounting needs. Other series components may offer different inductance or current ratings. Verify pin compatibility and thermal characteristics before substituting.
