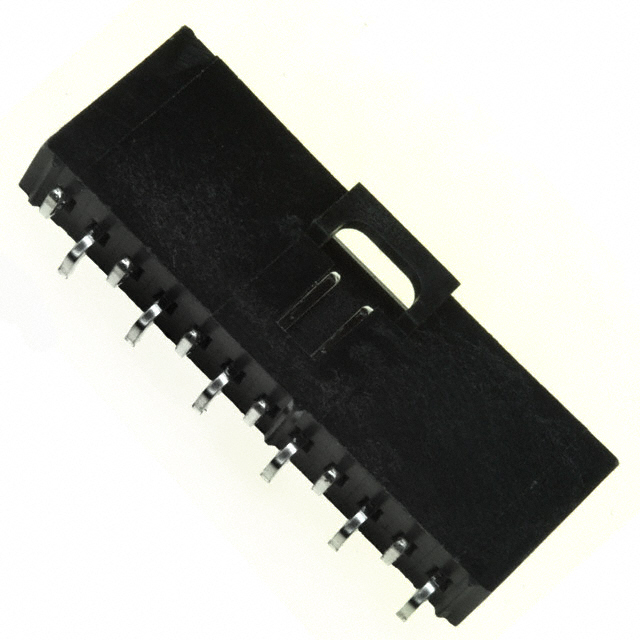

740990012

740990012 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Molex. Its product description is CONN HEADER SMD 12POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 740990012

• Description：CONN HEADER SMD 12POS 2.54MM
• Series：SL 74099
• Mfr：Molex
• Package：Tube
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：12
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Latch Holder
• Contact Length - Mating：0.240" (6.10mm)
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.450" (11.43mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：150.0µin (3.81µm)
• Contact Finish - Post：Tin
• Contact Material：Phosphor Bronze
• Insulation Material：Polyester, Glass Filled
• Features：-
• Operating Temperature：-
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 740990012
