74270015

Overview

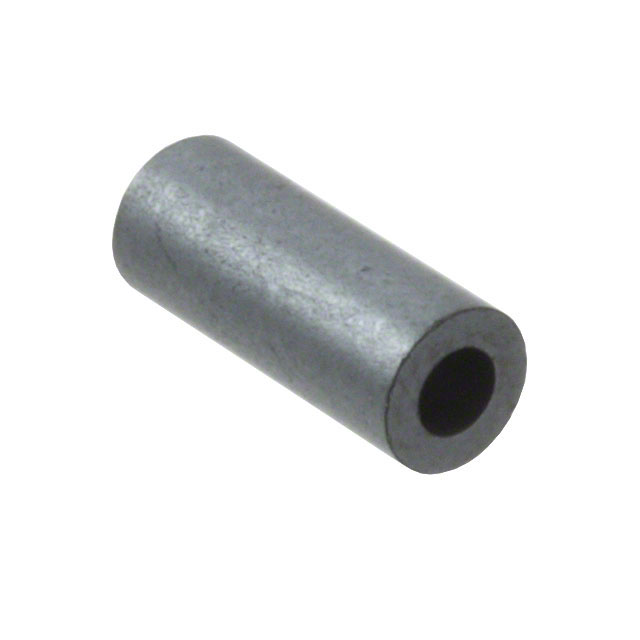

The Würth Elektronik 74270015 is a WE-SAFB small size EMI suppression ferrite bead constructed from NiZn material, designed for broadband frequency range applications. It features a cylindrical shape with an inner diameter of 1.65 mm and an overall length of 4 mm. The component provides an impedance of 50 Ohms at 25 MHz and operates within a temperature range of -25°C to +125°C.

Feature Summary

• Utilizes NiZn material for effective broadband noise suppression
• Compact cylindrical design suitable for space-constrained environments
• Snap-on installation method for rapid cable integration

Applications

• Suppression of electromagnetic interference on cables
• RFI mitigation in electronic assemblies
• Broadband noise filtering for signal lines

Procurement Notes

Verify the specific impedance value and physical dimensions against the official datasheet before procurement. Confirm that the NiZn material composition aligns with the required frequency response characteristics for the target application. Ensure compatibility with the cable outer diameter specifications.

Selection Notes

Select this component when a compact, snap-on ferrite solution is required for broadband noise suppression. The NiZn material offers advantages in higher frequency ranges compared to MnZn alternatives. Consider the 1.65 mm inner diameter constraint when choosing compatible cable sizes.

Part Context

This part belongs to the WE-SAFB series of small size EMI suppression ferrite beads from Würth Elektronik. These components are engineered for efficient noise reduction in tight spaces, providing a reliable alternative to traditional clamp-on cores or soldered beads in various electronic systems.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
