74270023

Overview

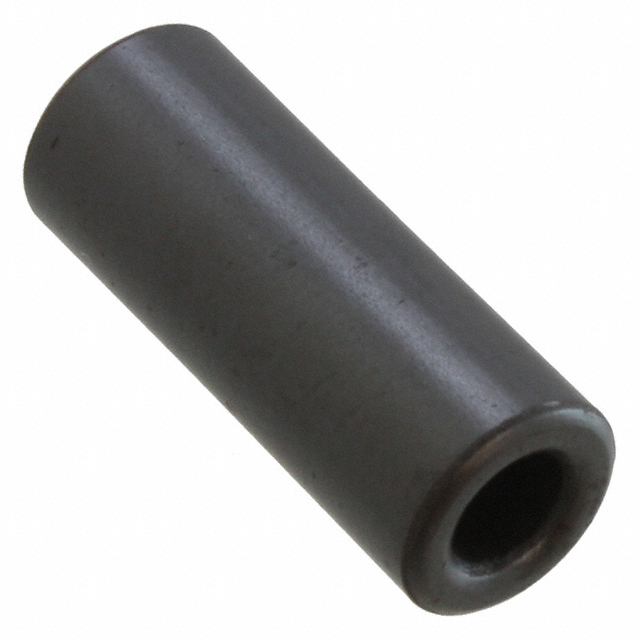

The Würth Elektronik 74270023 is a cylindrical EMI suppression ferrite bead from the WE-SAFB series. It features an inner diameter of 4 mm and an outer diameter of 7.7 mm, with a total length of 20 mm. The component provides an impedance of 160 ohms at a test frequency of 100 MHz. It operates within a temperature range of -25°C to 125°C.

Feature Summary

• Cylindrical solid ferrite core design for cable wrapping
• High impedance performance for effective EMI noise suppression
• Compact dimensions suitable for space-constrained applications

Applications

• EMI suppression on cables
• General electronic equipment noise filtering

Procurement Notes

Verify the specific part number against official Wurth Elektronik documentation to ensure accuracy. Confirm that the required impedance characteristics and physical dimensions align with the design specifications. Check for compliance with relevant environmental standards such as RoHS before finalizing procurement decisions.

Selection Notes

Select this component when a small form factor ferrite bead is required for high-frequency noise reduction. Ensure the target cable diameter fits within the 4 mm inner diameter constraint. Evaluate the 160 ohm impedance value against the specific noise spectrum requirements of the application to confirm adequate attenuation.

Part Context

This component belongs to the WE-SAFB series, which focuses on small-size EMI suppression solutions. The series offers various impedance values and dimensions to accommodate different cable sizes and noise profiles. It serves as a passive component for mitigating electromagnetic interference in electronic systems.

Replacement Considerations

Consult official Wurth Elektronik resources for verified substitute part numbers within the same series or compatible alternatives. Do not assume interchangeability based solely on similar dimensions; verify electrical parameters and material composition.
