74270103

Overview

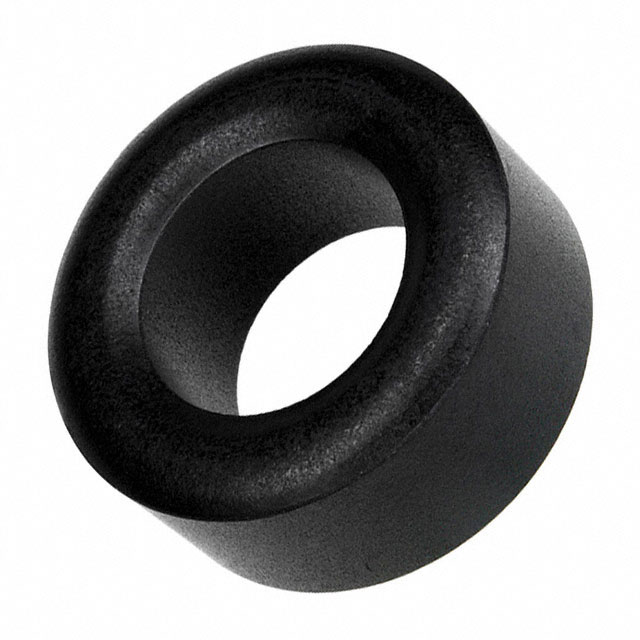

The Würth Elektronik 74270103 is a solid free-hanging ferrite core designed for electromagnetic interference suppression. It features an inner diameter of 15.00 mm and an outer diameter of 25.00 mm, with a length of 12.00 mm. The component utilizes 3W800 material composition to provide an impedance of 125 Ohms at 100 MHz and 60 Ohms at 25 MHz.

Feature Summary

• Solid construction without split design for stable mounting
• Utilizes 3W800 material for effective high-frequency noise attenuation
• Free-hanging installation type suitable for cable wrapping

Applications

• Cable ferrite suppression
• General EMI filtering
• Industrial equipment noise reduction

Procurement Notes

Verify the specific part number against official Wurth Elektronik documentation to confirm material grade and impedance characteristics. Ensure the selected component matches the required cable diameter and environmental operating conditions for the intended application.

Selection Notes

Select this component based on the 15.00 mm inner diameter requirement and the need for a solid, non-split ferrite design. Consider the 125 Ohm impedance at 100 MHz when evaluating noise suppression performance for the target frequency range.

Part Context

This component belongs to the Würth Elektronik ferrite core product line, specifically categorized as a solid free-hanging type. It is distinct from snap-on or split-core variants, offering a permanent solution for cable shielding applications.
