74270116

Overview

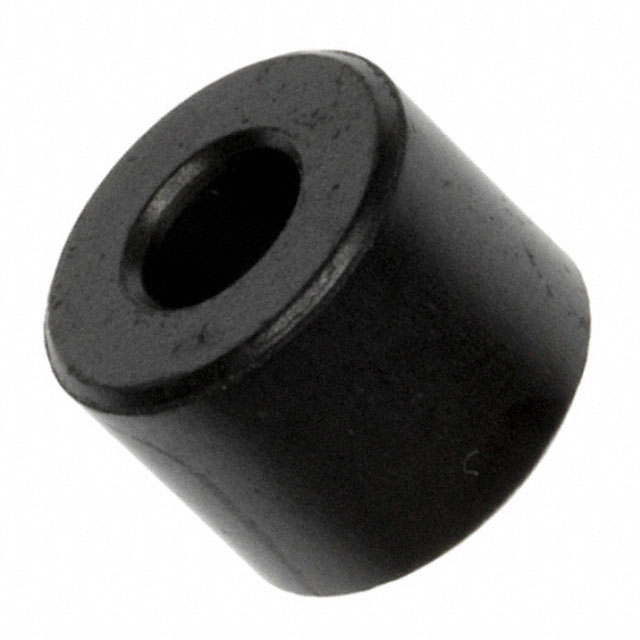

The Würth Elektronik part number 74270116 is a round, solid ferrite core belonging to the WE-TOF series. It exhibits an impedance of 154 Ohms at 100 MHz. The component has a length of 6.35 mm (0.250 inches). It is classified as obsolete status.

Applications

• Cable and wiring electromagnetic interference suppression
• General signal integrity enhancement

Procurement Notes

Verify current availability as the component is listed with obsolete status. Confirm compatibility with existing designs before procurement. Check for authorized distributors offering remaining stock or valid replacement alternatives from the manufacturer.

Selection Notes

Select this component for applications requiring a small form factor round ferrite core. The 6.35 mm length suits tight spatial constraints. Ensure the target frequency range aligns with the 154 Ohm impedance specification at 100 MHz for effective noise attenuation.

Part Context

This part belongs to the WE-TOF series of easy-winding ferrite cores. These components are designed for straightforward installation on cables and wires. The series focuses on providing reliable electromagnetic interference mitigation in compact electronic assemblies.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation due to the obsolete status.
