74270176

Overview

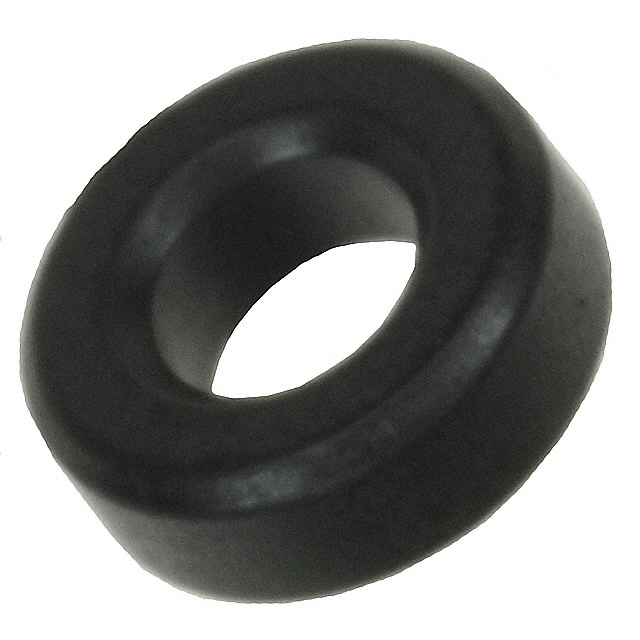

The Wurth Elektronik part number 74270176 is a WE-TOF series toroidal ferrite core designed for electromagnetic interference (EMI) suppression. It features an inner diameter of 5 mm, an outer diameter of 5 mm, and a height of 5 mm. The component is constructed from 7W850 material and operates within a frequency range of 25 MHz to 100 MHz.

Feature Summary

• Utilizes 7W850 ferrite material optimized for high-frequency noise attenuation
• Compact cylindrical geometry facilitates installation on small-diameter conductors
• Engineered specifically for broadband EMI suppression applications

Applications

• Electromagnetic interference suppression
• Coaxial cable noise filtering
• Wire-wrapping line protection

Procurement Notes

Verify the specific manufacturer part number against official Wurth Elektronik documentation to ensure accuracy. Confirm that the required physical dimensions and material specifications align with your design constraints before procurement. Cross-reference datasheets for any updates regarding compliance standards or availability changes.

Selection Notes

Select this component when space-constrained designs require effective high-frequency noise reduction on thin wires or coaxial cables. The 5 mm bore size dictates compatibility with specific conductor diameters. Ensure the operating environment falls within the specified frequency range for optimal impedance performance.

Part Context

This component belongs to the WE-TOF series of toroidal ferrite cores manufactured by Wurth Elektronik. These cores are distinct from snap-on types due to their solid ring structure, requiring wire threading during assembly. They serve as passive components in signal integrity management.

FAQ

What is the primary material composition of the 74270176 core?

The core is made from 7W850 ferrite material.

What are the physical dimensions of this toroid?

It has an inner diameter of 5 mm, an outer diameter of 5 mm, and a height of 5 mm.
