74271222

Overview

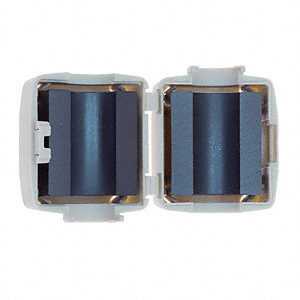

The Würth Elektronik part number 74271222 is a STAR-TEC Snap Ferrite core designed for cable installation. It features a square shape with an internal diameter of 5 mm and external dimensions of 32.5 mm in length, 18.8 mm in width, and 13.2 mm in height. The component operates within a temperature range of -25°C to +105°C and weighs 11.200 g. It provides an impedance of 98 Ohms at 25 MHz.

Feature Summary

• Incorporates safety key technology for secure attachment
• Utilizes snap-on design for rapid cable installation
• Constructed from ferrite material for electromagnetic interference suppression

Applications

• General electronic equipment
• Cable shielding applications
• Electromagnetic interference suppression

Procurement Notes

Verify the specific suffix designation when ordering, as variations such as 'S' may indicate different packaging or minor physical attributes not detailed in the base datasheet. Confirm that the standard bulk or tray packaging aligns with assembly requirements. Ensure the operating temperature range meets the environmental conditions of the target application before finalizing procurement.

Selection Notes

Select this component for applications requiring quick installation on cables with a 5 mm diameter. The 98 Ohm impedance at 25 MHz makes it suitable for general EMI suppression tasks. Consider the physical dimensions and weight constraints of the enclosure. Verify compatibility with the safety key mechanism if manual handling tools are not used during assembly.

Part Context

This component belongs to the STAR-TEC series by Würth Elektronik, which specializes in snap-on ferrite cores. The series is characterized by integrated safety keys to prevent accidental opening. This specific model represents a standard square profile variant intended for general-purpose electronic equipment rather than specialized high-power or automotive sectors.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
