7427151S

Overview

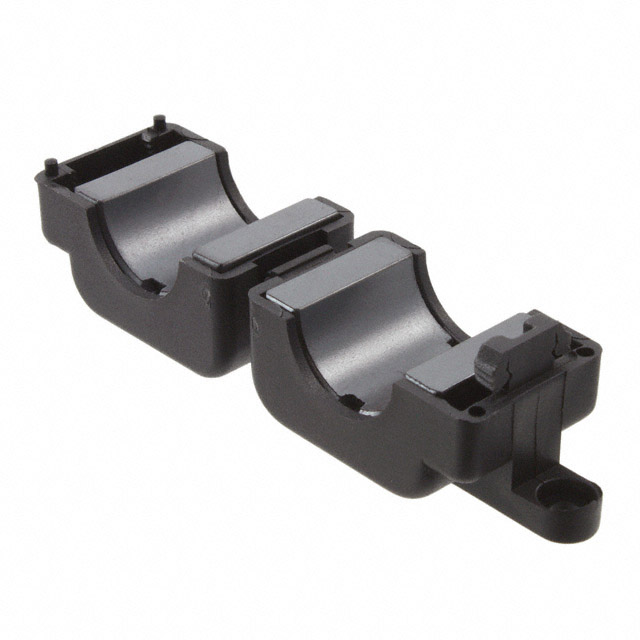

The Wurth Elektronik 7427151S is a snap-on ferrite core from the STAR-RING series, designed for electromagnetic interference suppression. It features an internal diameter of 14.5 mm and utilizes 4W620 material composition. The component provides an impedance of 64 Ω at 25 MHz and 119 Ω at 100 MHz. Physical dimensions are 40 mm in width, 30 mm in height, and 20 mm in depth. It includes a safety key mechanism to prevent unauthorized removal.

Feature Summary

• Incorporates safety key technology to secure the ferrite onto cables and prevent unauthorized detachment
• Constructed from 4W620 ferrite material for effective electromagnetic compatibility enhancement
• Features a single opening design for quick installation around existing wiring

Applications

• Power cable noise suppression
• Computer data line filtering
• General circuit board EMI mitigation

Procurement Notes

Verify the specific part number suffix 'S' to ensure the inclusion of the safety key feature, as standard versions may lack this security mechanism. Confirm compliance with RoHS and REACH standards if required by project specifications. Cross-reference the impedance values at 25 MHz and 100 MHz against the datasheet to validate performance requirements for the target frequency range.

Selection Notes

Select this component when cable security against accidental or intentional removal is critical. The 14.5 mm aperture accommodates cables of corresponding outer diameters. Ensure the application environment falls within the operational temperature limits defined by the manufacturer. Consider the physical footprint of 40x30x20 mm for spatial constraints in the assembly.

Part Context

This part belongs to the STAR-RING series of snap-on ferrites from Wurth Elektronik. It is categorized as a fast-installation ferrite core intended for general electronic equipment. The product serves as a hardware accessory for enhancing signal integrity and reducing radiated emissions in various electronic setups.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult official distributor databases for cross-referencing similar snap-on ferrites with comparable impedance and aperture dimensions.
