74271633S

Overview

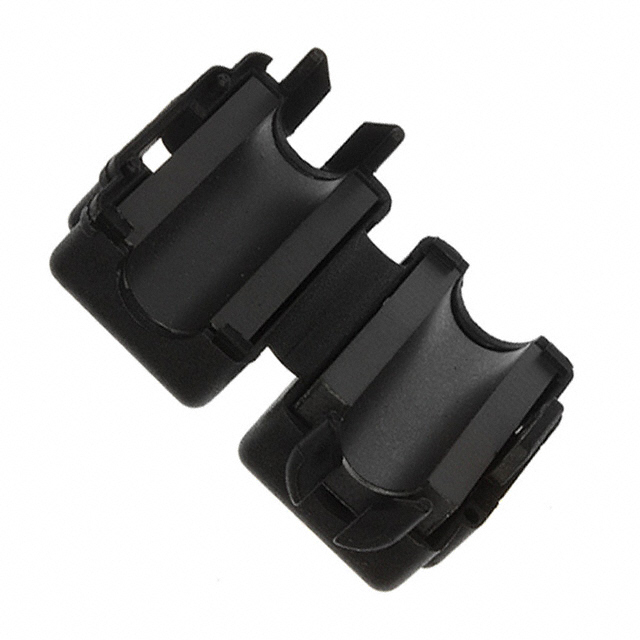

The Würth Elektronik 74271633S is a snap-on ferrite core from the STAR-GAP series, designed for RF applications. It features an internal diameter of 8 mm and a single opening. The component utilizes 4W620 material, providing an impedance of 28 Ω at 25 MHz and 100 Ω at 100 MHz. Physical dimensions are 21.7 mm in width, 19 mm in height, and 35.1 mm in depth. It operates within a temperature range of -25°C to +105°C.

Feature Summary

• Snap-on design with integrated safety key for secure installation on cables
• High impedance performance in the RF frequency range
• RoHS compliant construction

Applications

• RF interference suppression
• General EMI filtering on cables
• Safety-related applications

Procurement Notes

Verify the manufacturer part number 74271633S against official Wurth Elektronik documentation to ensure correct specification matching. Confirm that the required impedance characteristics align with the target application's frequency requirements. Check for any specific handling instructions regarding the snap-fit mechanism during assembly.

Selection Notes

Select this component when an 8 mm inner diameter is required for cable fitting. Choose based on the need for 100 Ω impedance at 100 MHz using 4W620 material. Consider the physical size constraints of 21.7 x 19 x 35.1 mm. Ensure the operating temperature range of -25°C to +105°C meets environmental conditions.

Part Context

This part belongs to the STAR-GAP series of snap-on ferrites from Würth Elektronik. These cores are engineered for easy installation onto existing cables without disconnection. The series offers various sizes and materials to address different EMI suppression needs across industrial and consumer electronics sectors.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
