74272141

Overview

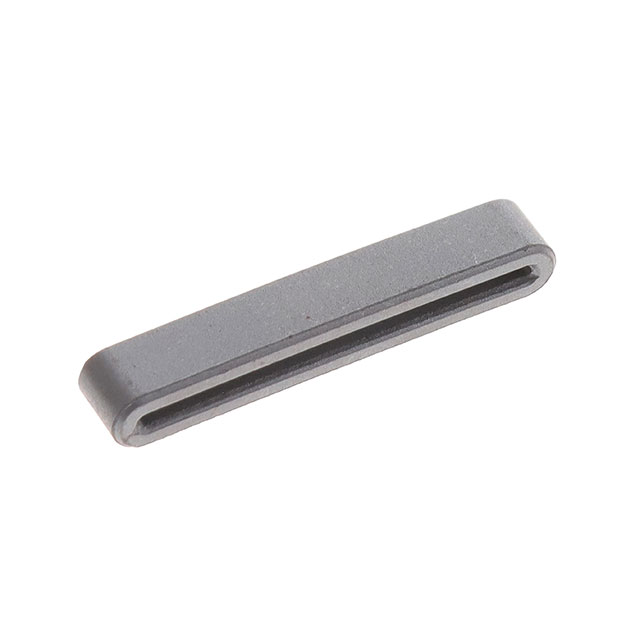

The Würth Elektronik part number 74272141 is a flat ferrite core belonging to the WE-FLAT series. It is designed for cable assembly applications within embedded electronics and industrial equipment. The component operates in the frequency range of 1 MHz to 1 GHz with an impedance of 53 ohms. Its physical dimensions are 40 mm by 1.3 mm.

Feature Summary

• Flat profile design suitable for space-constrained cable assemblies
• Effective attenuation performance across the 1 MHz to 1 GHz frequency spectrum

Applications

• Embedded electronics cable shielding
• Industrial equipment signal integrity management

Procurement Notes

Verify the specific datasheet version when ordering, as manufacturer documentation may be updated. Confirm that the 53-ohm impedance specification aligns with your system's noise suppression requirements. Ensure the 40 mm length fits the available installation space on the target cables or harnesses.

Selection Notes

Select this component when a low-profile ferrite solution is required for flat or bundled cables. The 53-ohm impedance at high frequencies makes it suitable for suppressing broadband noise. Compare against standard round cores if higher aperture clearance is needed, but prioritize this model for compact form factors.

Part Context

This item is part of the WE-FLAT series from Würth Elektronik, which specializes in flat geometry magnetic components. Unlike traditional toroidal clamps, these cores are engineered to wrap around flat ribbon cables or tightly packed wire bundles without adding significant bulk to the assembly.
