7427218

Overview

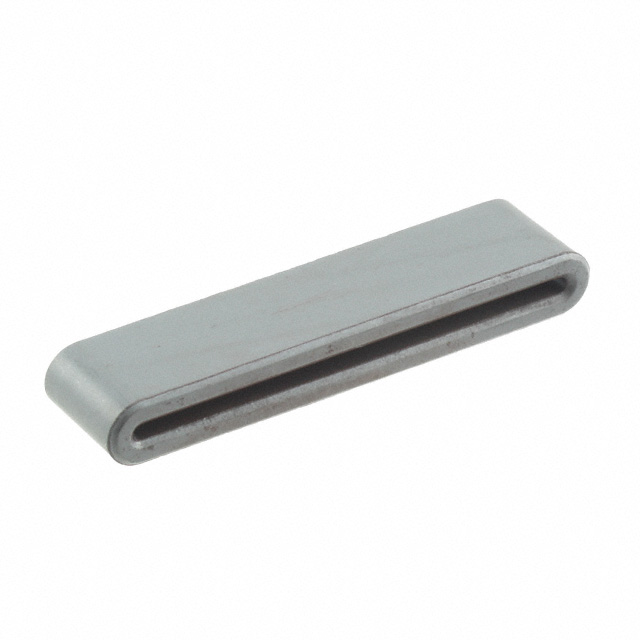

The Würth Elektronik 7427218 is a WE-FLAT series flat ferrite core designed for general electronic equipment. Constructed from 4W620 material, it provides an impedance of 66 Ω at 100 MHz. The component features a maximum wire count of 34 and an internal width of 1.3 mm. Its external dimensions are 49.6 mm in width, with no opening diameter as it is a solid flat core.

Feature Summary

• Designed specifically for filtering ribbon cables and managing common-mode interferences
• Utilizes 4W620 material composition for effective electromagnetic interference suppression
• Supports up to 34 wires within its flat structure

Applications

• Ribbon cable filtering
• Common-mode interference suppression
• General electronic equipment

Procurement Notes

Verify the manufacturer part number 7427218 against official Wurth Elektronik documentation to ensure authenticity. Confirm that the material specification matches 4W620 and that the impedance rating aligns with 66 Ω at 100 MHz. Check for RoHS and REACH compliance status in the latest datasheet before procurement.

Selection Notes

Select this component when filtering flat ribbon cables is required. Ensure the application involves general electronics where common-mode noise reduction is necessary. Verify that the physical dimensions accommodate the specific cable bundle size and that the 4W620 material properties suit the operating frequency range.

Part Context

This component belongs to the WE-FLAT series from Würth Elektronik. It is categorized as a flat ferrite core intended for use in general electronic applications. The product line focuses on providing efficient solutions for filtering flat cables and mitigating electromagnetic interference in compact designs.

FAQ

What is the material composition of the 7427218 core?

The core is made from 4W620 material.

Does the 7427218 have an opening diameter?

No, it does not have an opening diameter as it is a solid flat core.
