Overview

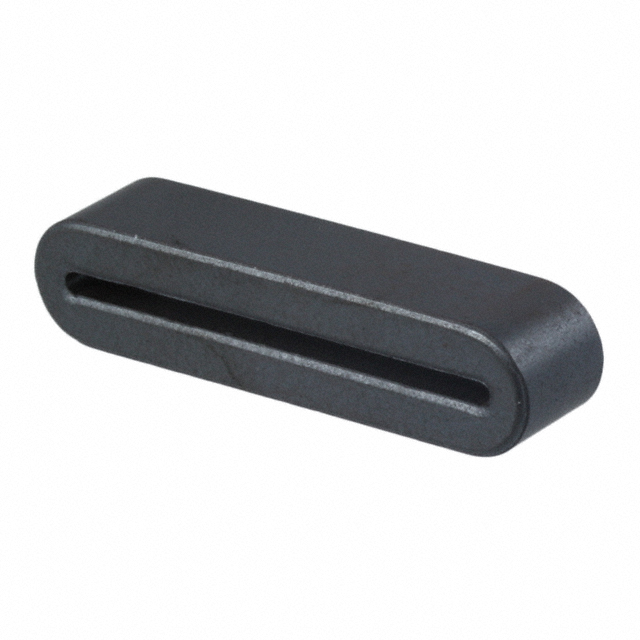

The Würth Elektronik part number 7427223 is a flat ferrite core belonging to the WE-FLAT series. It features a solid construction with an impedance of 48 ohms. The physical dimensions are specified as 30 mm in width and 1 mm in thickness. This component is designed for use in general electronic equipment.

Feature Summary

• Solid flat ferrite core design
• 48 ohm impedance rating

Applications

• General electronic equipment

Procurement Notes

Verify the specific datasheet version for the 7427223 model, as documentation may indicate usage restrictions. Confirm that the application aligns with the manufacturer's statement regarding general electronic equipment only. Ensure compliance with any written authorization requirements if intended for specialized applications beyond standard general electronics.

Selection Notes

Select this component when a low-profile flat ferrite core is required for EMI suppression. The 48 ohm impedance value suits specific frequency attenuation needs. The 1 mm thickness allows for integration into space-constrained layouts where traditional toroidal cores cannot fit.

Part Context

This component is part of the WE-FLAT series from Würth Elektronik. It serves as a passive electromagnetic interference suppression element. The flat geometry distinguishes it from standard round or split-core ferrites, offering a different mounting profile for cable management.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
