7427224

Overview

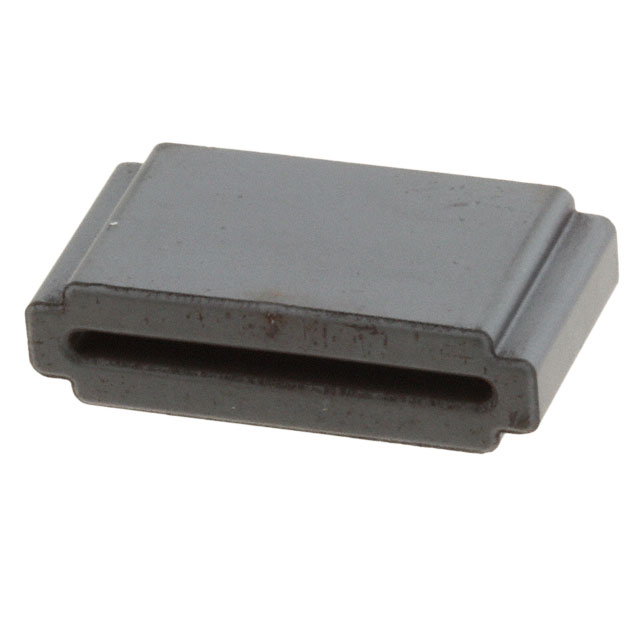

The Würth Elektronik 7427224 is a solid flat ferrite core from the WE-FLAT series, designed for EMI suppression on ribbon cables. It exhibits an impedance of 115 Ohms at 100 MHz and utilizes 4W620 material. The component features free-hanging installation with internal dimensions of 23.00 mm width by 1.50 mm height, and external dimensions of 28.00 mm width by 7.70 mm height. The total length measures 14.60 mm.

Feature Summary

• Solid design provides structural stability for filtering common-mode interference on flat cables
• Optimized for easy integration into digital equipment applications requiring compact EMI solutions

Applications

• Filtering common-mode interferences on ribbon cables
• EMI suppression in digital devices
• Cable and wiring noise reduction

Procurement Notes

Verify the specific manufacturer part number against official Wurth Elektronik documentation to ensure accuracy. Confirm that the 4W620 material composition and 115 Ohm impedance at 100 MHz match the project requirements. Check for RoHS compliance status in the latest datasheet before procurement.

Selection Notes

Select this component when a solid, non-hinged ferrite core is required for flat cable applications. The 23 mm internal width accommodates standard ribbon cables. Ensure the operating environment does not exceed the thermal limits specified in the official product datasheet.

Part Context

This part belongs to the WE-FLAT series of flat ferrite cores manufactured by Würth Elektronik. These components are specifically engineered for suppressing electromagnetic interference in digital circuits and cable assemblies, offering a compact solution compared to traditional toroidal cores.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided source data.
