7427225

Overview

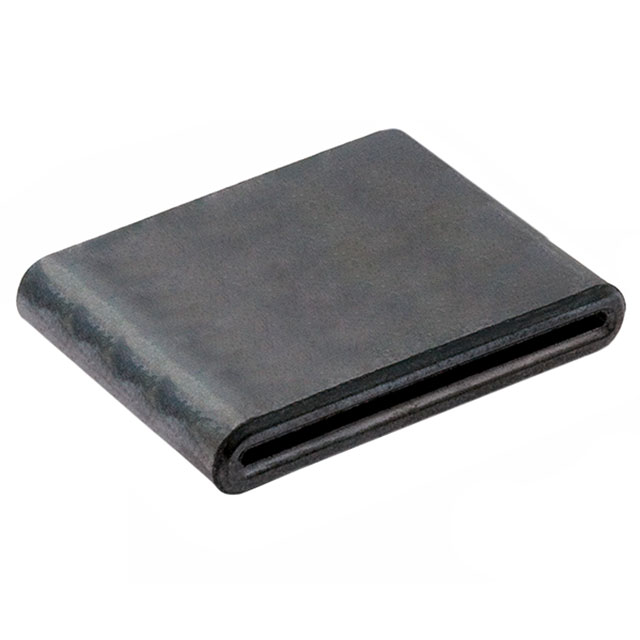

The Würth Elektronik 7427225 is a WE-FLAT series flat ferrite core designed for ribbon cable filtering. Constructed from 4 W 1500 material, it accommodates up to 13 wires within an inner dimension of 18.8 x 1.1 mm. The component provides an impedance of 52 ohms at 100 MHz and measures 23.8 mm in length, 7 mm in width, and 6.3 mm in height.

Feature Summary

• Designed for easy installation over ribbon cables to filter common-mode interferences
• Accommodates up to 13 individual wires within the core aperture
• Utilizes 4 W 1500 ferrite material for effective noise suppression

Applications

• Ribbon cable filtering
• Common-mode interference suppression
• Data bus noise reduction

Procurement Notes

Verify the specific manufacturer part number 7427225 against official Wurth Elektronik documentation to ensure correct material grade (4 W 1500) and dimensional specifications. Confirm compatibility with target cable assemblies prior to procurement.

Selection Notes

Select this component when filtering multi-conductor ribbon cables requiring common-mode noise suppression. Ensure the cable bundle fits within the 18.8 x 1.1 mm aperture and that the 52 ohm impedance at 100 MHz aligns with the required frequency range.

Part Context

This part belongs to the WE-FLAT series of flat ferrite cores from Würth Elektronik. These components are engineered specifically for flat cabling applications, offering a compact solution for electromagnetic interference mitigation in data transmission lines.

Replacement Considerations

Consult official Wurth Elektronik substitution guides for verified alternatives. Generic ferrite cores may not match the specific 4 W 1500 material properties or the precise 13-pole wire accommodation capability.
